Rectangular Can Oil-Filled High Voltage Capacitor
Rectangular Can Oil-Filled High Voltage Capacitor
SKU:OIL-da962f
Reliable 5 µF Rectangular Can High Voltage Capacitor for industrial applications. Superior performance and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Rectangular Can Oil-Filled High Voltage Capacitor
$49.99
Quantity: 1
Claim Your Seller Account
Rectangular Can Oil-Filled High Voltage Capacitor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

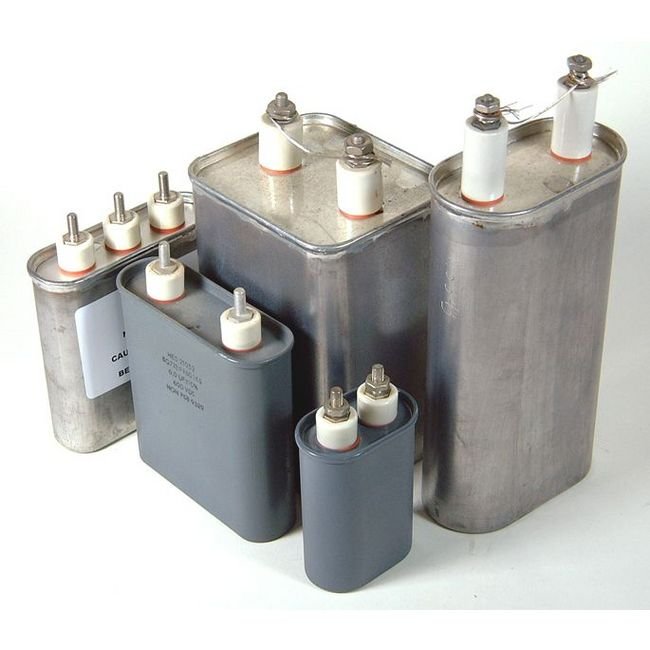

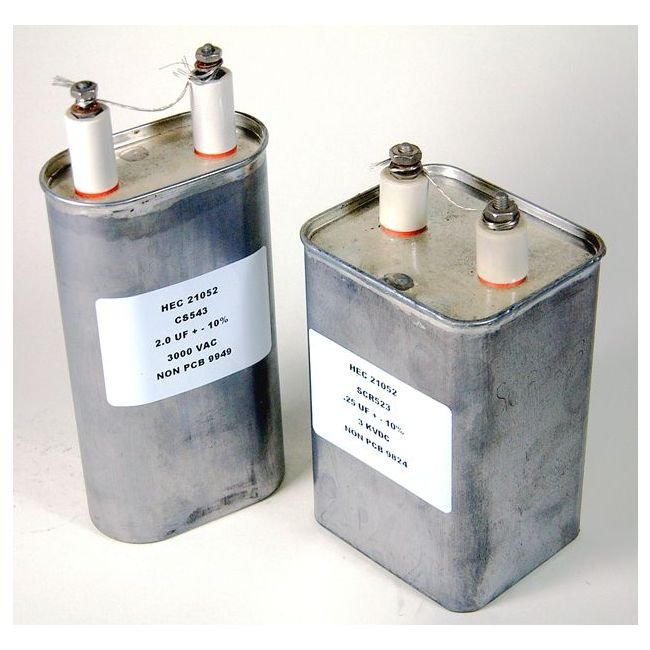

Introducing the Rectangular Can Oil-Filled High Voltage Capacitor from the CC Series. With a capacitance of 5 µF and a voltage rating of 5000 VDC, this capacitor offers superior performance and reliability. Constructed with plated drawn steel in a precise rectangular shape, it ensures efficient operation and durability. Designed to withstand extreme temperatures (-40 to +90 ºC) and maintain high insulation resistance (25000 MΩ), this capacitor is ideal for industrial applications requiring stable capacitance. Plus, its compliance with industry standards ensures quality and reliability for both consumer and institutional buyers.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel | Epoxy Paint
Specifications Cap
5 µF
Specifications Capacitance Range
1 to 20 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

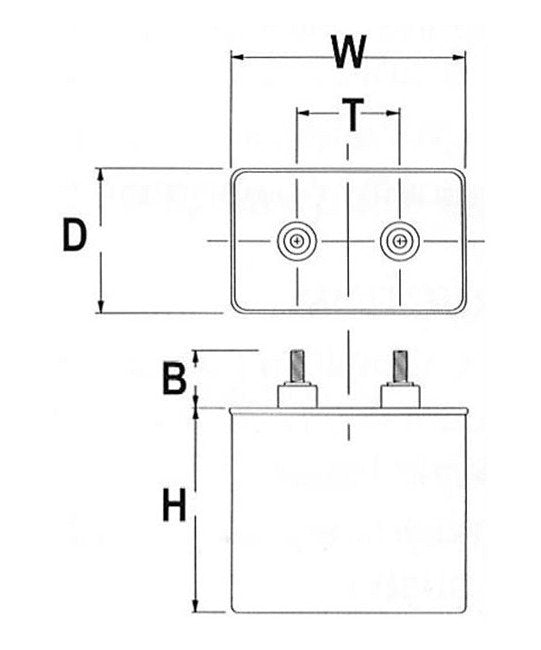

Specifications Dimension B
2 in
Specifications Dimension D
3.19 in
Specifications Dimension H
6.25 in
Specifications Dimension T
2.00 in
Specifications Dimension W
3.75 in
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
5000 V
