Rectangular Electromagnet - Small Flat-Faced 6x12in
Rectangular Electromagnet - Small Flat-Faced 6x12in
SKU:SMA-212450
Versatile Small Rectangular Flat-Faced Electromagnet - 6x12in, 3800 lb Pull, 65W Power, DC 110V, Ideal for Various Applications
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Rectangular Electromagnet - Small Flat-Faced 6x12in
$299.99
Quantity: 1
Claim Your Seller Account
Rectangular Electromagnet - Small Flat-Faced 6x12in
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

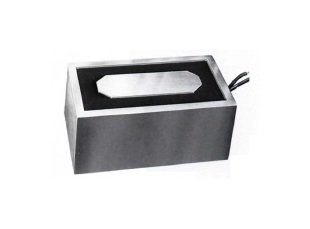

The Small Rectangular Flat Faced Electromagnet is a versatile solution suitable for both consumer and institutional applications. With precise specifications of Width 6 inches, Length 12 inches, Height 3 1/2 inches, and a Power rating of 65W, this electromagnet offers a Pull Capacity of 3800 lbs on low carbon steel, meeting institutional procurement standards. The optional DC Voltage Ratings of 110V and Mounting of 3 inches ensure compatibility with various setups. Designed for manual and automated operations, this electromagnet requires Rectifier-Controllers for optimal performance. Contact us for customization options to suit specific requirements.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.

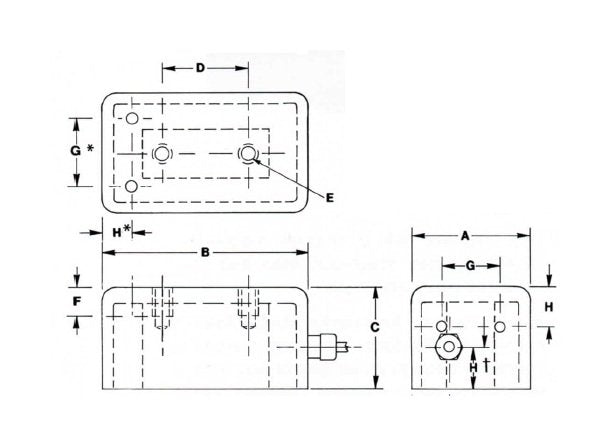

Specifications Height C
3 1/2 in
Specifications Length B
12 in
Specifications Mounting D
3 in
Specifications Optional Dc Voltage Ratings
110 V
Specifications Power
65 W
Specifications Pull Capacity
3800 lb
Specifications Standard Dc Voltage
110 V
Specifications Width A
6 in
