Rectangular Flat Faced Electromagnet - Small Size
Rectangular Flat Faced Electromagnet - Small Size
SKU:SMA-9c7422
Powerful Small Rectangular Electromagnet for manual or automated applications, ideal for flat, smooth surfaces.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Rectangular Flat Faced Electromagnet - Small Size
$279.99
Quantity: 1
Claim Your Seller Account
Rectangular Flat Faced Electromagnet - Small Size
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

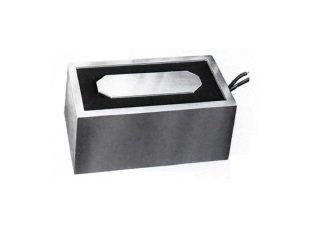

The Small Rectangular Flat Faced Electromagnet is a reliable and powerful solution for various applications. With a pull capacity of 1000 lb, it is suitable for both manual and automated operations. This electromagnet, operating at 37 W power and available with optional DC voltage ratings of 24V or 110V, is designed for efficiency and precision. It meets industry standards and offers the versatility needed for different setups. For custom requirements, consult the factory for tailored solutions.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.

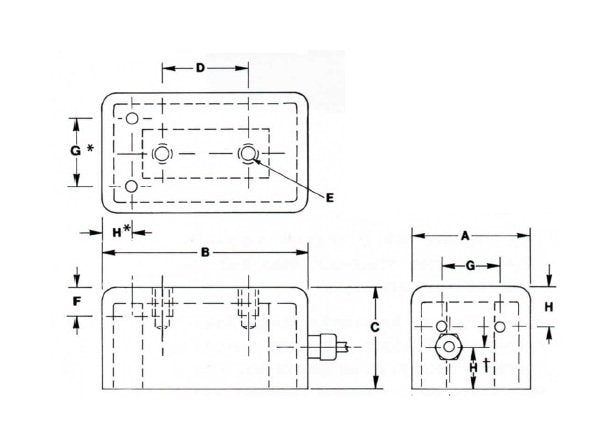

Specifications Height C
2 in
Specifications Length B
6 in
Specifications Location Of Leads G
1 in
Specifications Location Of Leads H
1 in
Specifications Mounting D
3 in
Specifications Net Weight
11 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
37 W
Specifications Pull Capacity
1000 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread Depth F
1/2 in
Specifications Thread E
3/8 to 16 in
Specifications Width A
3 in
