Rectangular Oil-Filled High Voltage Capacitor
Rectangular Oil-Filled High Voltage Capacitor
SKU:OIL-9ef1f6
High-performance Rectangular Oil-Filled Capacitor for voltage up to 600 VDC, ideal for snubber and commutation applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Rectangular Oil-Filled High Voltage Capacitor
$59.99
Quantity: 1
Claim Your Seller Account
Rectangular Oil-Filled High Voltage Capacitor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Introducing our SCR Series Oil-Filled Capacitors, featuring a rectangular shape and a capacitance range of 0.25 to 15 µF at 600 VDC. Constructed with drawn plated steel cans, this capacitor ensures reliable performance even in extreme temperature conditions (-40 to +90 ºC). With a Kraft paper and polypropylene dielectric and high insulation resistance, these capacitors are designed for snubber and commutation applications. The can construction options include welded steel, aluminum, or stainless steel with epoxy paint, meeting stringent industry standards for durability and performance.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
25 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

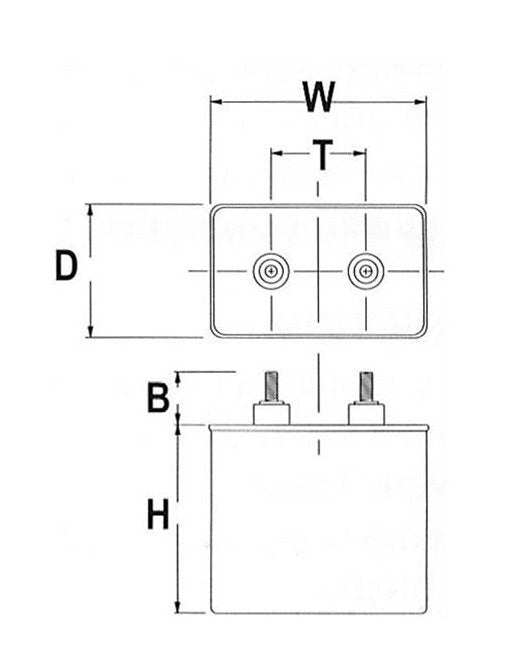

Specifications Dimension B
1.25
Specifications Dimension D
3.75
Specifications Dimension H
6.00
Specifications Dimension T
2.00
Specifications Dimension W
4.56
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Rectangular
Specifications Voltage Dc
600 V
