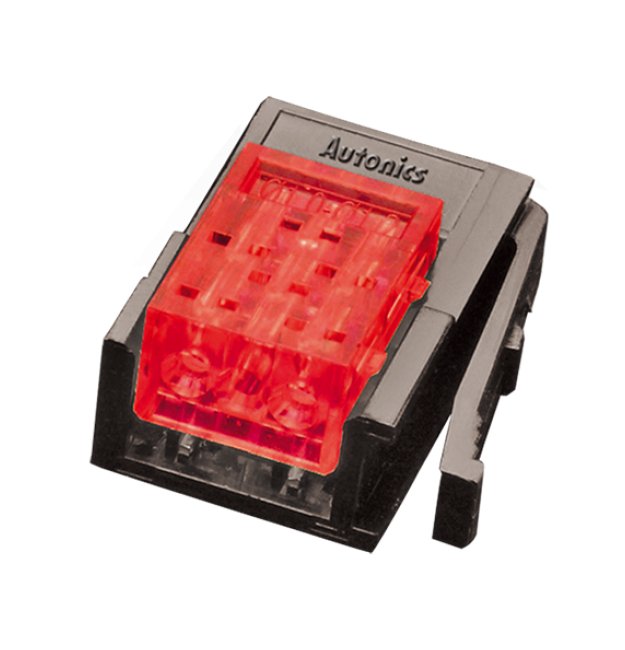

Red 3-Pin Wire Mount Plug Connector
Red 3-Pin Wire Mount Plug Connector
SKU:PRO-c8986b
Reliable Red 3-Pin Wire Mount Plug Connector for secure electrical connections in various applications.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Red 3-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Red 3-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Red 3-Pin Wire Mount Plug Connector is a high-quality sensor connector designed for applications requiring reliable electrical connections. With a Terminal Material of C5210 (Gold 0.2 μm) and Body Material of Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0), this connector ensures durability and safety. It can handle a Maximum Alternating Current (AC)/Direct Current (DC) Voltage of ~250 V and a Maximum Rated Current of 3.0 A. Compliant with industry standards, including FAR compliance factors and NIST standards.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Red
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Red
Specifications Cover Diameter
0.8 to 1.0 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
3
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
