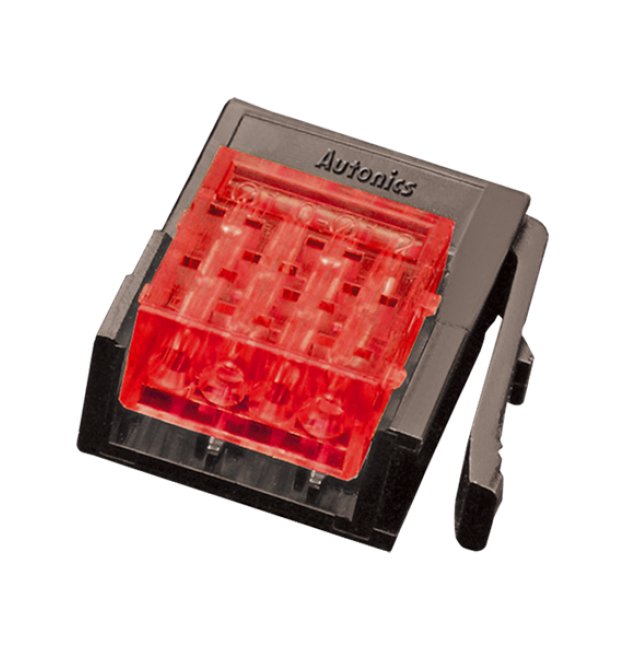

Red 4-Pin Wire Mount Plug Connector
Red 4-Pin Wire Mount Plug Connector
SKU:PRO-f3dcd6
Powerful Red 4-Pin Wire Mount Plug Connector for secure and efficient connectivity. Ideal for industrial use.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Red 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Red 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connectivity with our Red 4-Pin Wire Mount Plug Connector. Designed for industrial use, this connector boasts a Terminal Material of C5210 (Gold 0.2 μm), ensuring secure connections. The Body Material is Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) meeting UL94V-0 standards for safety. With a Maximum Rated Current of 3.0 A and Maximum Alternating Current (AC)/Direct Current (DC) Voltage of ~250 V, this Sensor Connector is reliable and efficient for various applications. The Wire Size of 26-24 AWG allows for flexibility in usage, making it a versatile choice for institutional buyers.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Red
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Red
Specifications Cover Diameter
0.8 to 1.0 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
