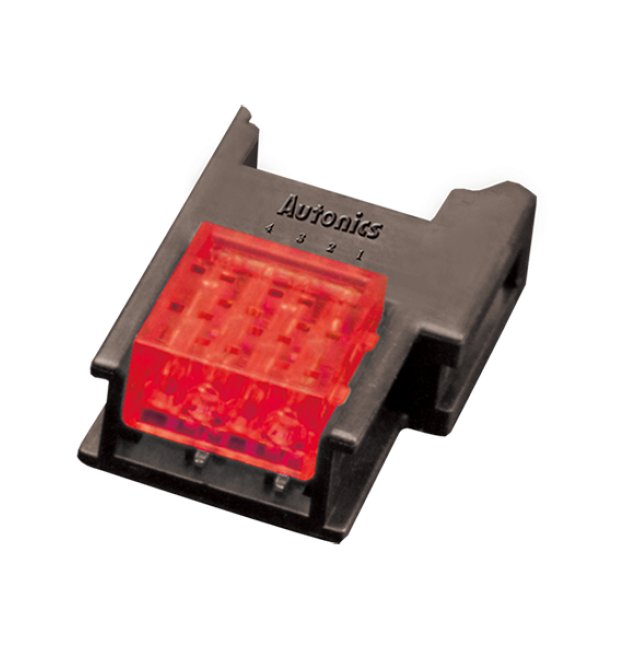

Red 4-Pin Wire Mount Socket Connector
Red 4-Pin Wire Mount Socket Connector
SKU:PRO-7d9063
Reliable Red 4-Pin connector for 26-24 AWG wires, 0.13-0.21mm² area, 250V AC/DC, 3.0A current. Secure, easy-to-use design.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Red 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
Red 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your connectivity needs with our Red 4-Pin Wire Mount Socket Connector. This sensor connector, constructed with C5210 gold terminals and polycarbonate/ABS body, ensures reliable performance. Compliant with industry standards, it supports 26-24 AWG wires with a cross-sectional area of 0.13 to 0.21mm², facilitating up to 250V AC/DC voltage and 3.0A current. The durable design, featuring secure terminal retention and easy extraction/insertion, makes it ideal for various applications.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Red
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Red
Specifications Cover Diameter
0.8 to 1.0 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.13 to 0.21 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.13 to 0.21 mm²
Specifications Wire Size
26-24 AWG
