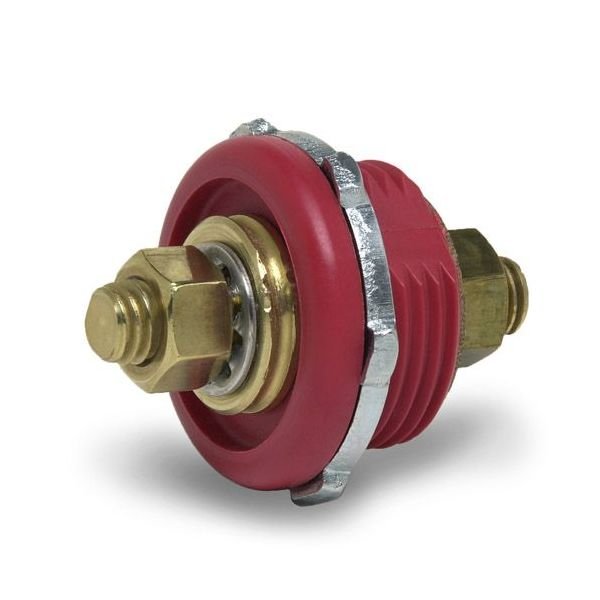

Red Battery Feeder Stud Terminal: 3/8-16 in, 285A Capacity
Red Battery Feeder Stud Terminal: 3/8-16 in, 285A Capacity
SKU:BAT-5369a3
High-performance Red Battery Feeder Stud Terminal for power distribution. 285A capacity, V0-V2 flammability rating.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Red Battery Feeder Stud Terminal: 3/8-16 in, 285A Capacity
$24.99
Quantity: 1
Claim Your Seller Account
Red Battery Feeder Stud Terminal: 3/8-16 in, 285A Capacity
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Red Battery Feeder Stud Terminal is a reliable component from the Battery Jumper Terminals and Studs series designed for robust power distribution applications. With a continuous current handling capacity of 285A at 50 mm² cable, this stud exhibits exceptional performance. Crafted with impact-resistant Polybutylene Terephthalate (PBT) insulator material and a brass terminal, it ensures durability and safety. This stud meets V0-V2 UL94 flammability rating standards and limits temperature rise from 55.6ºC to 67ºC even under demanding conditions. Ideal for both consumer and institutional buyers seeking high-quality components.
Product Specifications
Specifications Case Material
Impact-Resistant Plastic Insulator
Specifications Color
Red
Specifications Continuous Current Handling Capacity At 50 Millim
285 A
Specifications Insulator Flammability Rating
V0-V2 Underwriters' Laboratory (UL94)
Specifications Insulator Material
Polybutylene Terephthalate (PBT)
Specifications Series
Battery Jumper Terminals and Studs
Specifications Stud Size
3/8-16 in
Specifications Temperature Rise
55.6 to 67 ºC
Specifications Terminal Material
Brass
