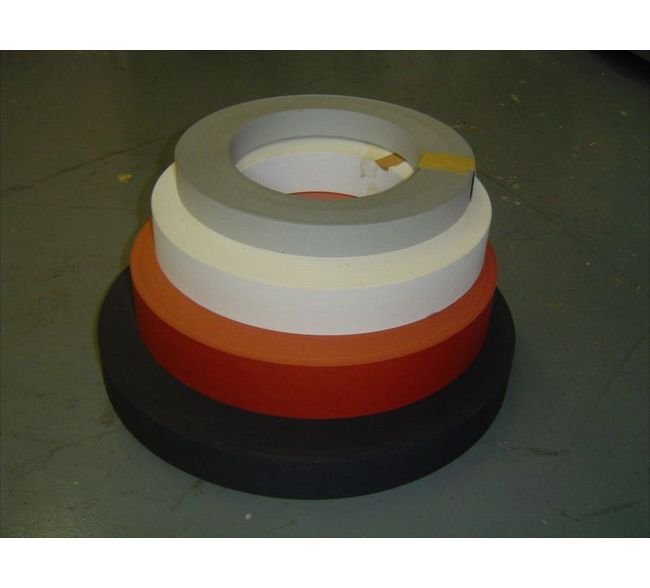

The Red Fibre Coil 0.045" Thickness is a premium-grade Vulcanized Fibre product designed for a wide range of applications, including washers, insulating plates, electric motor insulation, gaskets, and more. It offers exceptional mechanical strength, heat and cold resistance, light weight, excellent electrical properties, tear resistance, and can be easily machined with standard tools. This coil is available in rolls for easy automatic punching. Meeting stringent industry standards, such as ASTM D-710 and Military Spec Mil-F-1148, this high-quality fibre coil is ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Armature slot insulation, liners, washers, coil insulation, arc shields, formed specialties and gasket stock.
Continuous Heat Resistance Electrical
115 ºC
Continuous Heat Resistance High Ampere Arc Ignition
120 sec
Continuous Heat Resistance Hot Wire Ignition
60-119 sec
Continuous Heat Resistance Mechanical
110 ºC
Specifications Arc Resistance
125 sec
Specifications Bond Strength
900 psi
Specifications Bursting Strength
325 psi
Specifications Coefficient Of Friction Fibre On Fibre
0.16
Specifications Coefficient Of Friction Fibre On Smooth Cast Iron
0.21
Specifications Color
Red
Specifications Comparative Tracking Index
400 - 599 V
Specifications Compressive Strength
35000 psi
Specifications Density
1.20 gm/cc
Specifications Dielectric Strength
200 Volts/mil
Specifications Dimensional Change In Moisture Content Cd
0.25
Specifications Dimensional Change Per Percent Change Md
0.10 %
Specifications Dimensional Change Thickness
1.00 %
Specifications Flammability
0.5 in/min
Specifications Flammability Ul94
94HB
Specifications Flexural Strength Cd
16000 psi
Specifications Flexural Strength Md
29000 psi
Specifications Form
Sheet, Roll, and Coil
Specifications Impact Strength Cd
2.0 ft.lbs/in
Specifications Impact Strength Md
2.5 ft.lbs/in
Specifications Modulus Of Elasticity In Flexural X 105 Cd
7
Specifications Modulus Of Elasticity In Flexural X 105 Md
10
Specifications Modulus Of Elasticity In Tension X 105 Cd
8
Specifications Modulus Of Elasticity In Tension X 105 Md
12
Specifications Pricepound 1000 Lbs
$5.51
Specifications Pricepound 100 199 Lbs
$7.35
Specifications Pricepound 13 49 Lbs
$9.18
Specifications Pricepound 200 499 Lbs
$6.43
Specifications Pricepound 500 999 Lbs
$5.97
Specifications Pricepound 50 99 Lbs
$8.27
Specifications Rockwell Hardness R Scale
70 divisions
Specifications Specific Heat
0.403 Btu/lb/ºF
Specifications Specific Volume
23.0 in³/lb
Specifications Tear Strength Cd
700 gm
Specifications Width
26"
