Parker / Autoclave Engineers →

Red Heavy Duty Inflation Hose Assembly with Shut-off Valve

Red Heavy Duty Inflation Hose Assembly with Shut-off Valve

HIG-e848ef

High-quality Red Inflation Hose Assembly - 3/8" ID x 32', all-weather, shut-off valve, pressure relief

$49.99
$49.99
Sale

Initiate Order

Red Heavy Duty Inflation Hose Assembly with Shut-off Valve

Red Heavy Duty Inflation Hose Assembly with Shut-off Valve

$49.99

Quantity: 1

Claim Your Seller Account

Red Heavy Duty Inflation Hose Assembly with Shut-off Valve

Red Heavy Duty Inflation Hose Assembly with Shut-off Valve

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Red Heavy Duty Inflation Hose Assembly is a reliable solution designed for demanding applications. With a 3/8" inside diameter and 32' length, this hose is ideal for use in high-pressure heavy-duty bags. It features a red all-weather construction for durability and visibility, along with a shut-off and pressure relief valve for added safety. The hose is compatible with 1/4" Safety Coupler and Nipple connections, meeting the stringent standards of the 161-5 Series. Trust Petersen® for quality and functionality in every use case.

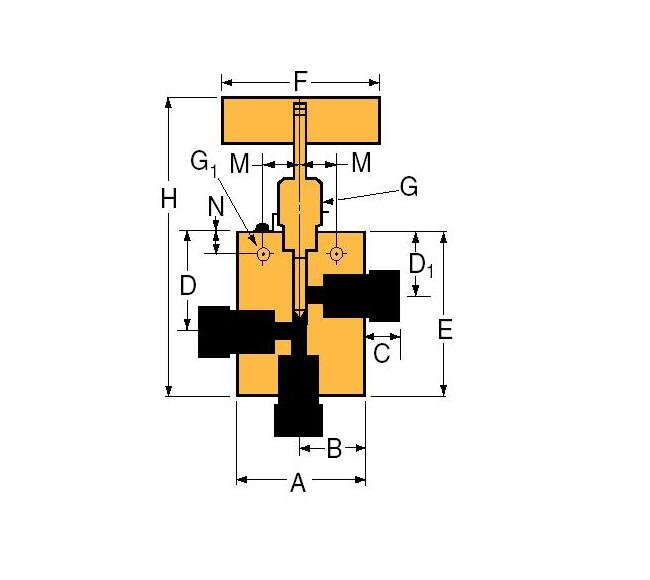

Product Specifications

Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.75 in | 44.45 mm
Specifications D Height
2.38 in | 60.45 mm
Specifications E Height
3.62 in | 91.95 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.70 in | 170.18 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).† Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
