Red Large Knob, Spring-loaded Captive Panel Screw - PEM C.A.P.S. - Metric

Name: Red Large Knob, Spring-loaded Captive Panel Screw - PEM C.A.P.S. - Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-2f120a
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-2f120a

Enhance access panel fastening with this durable Red Large Knob Spring-loaded Captive Panel Screw from PEM, featuring a Knurled Cap design and ANSI/ASME compliance.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance access panel fastening with this high-quality Red Large Knob Spring-loaded Captive Panel Screw from PEM. Featuring a Knurled Cap design, M4 x 0.7 thread size, and durable construction using materials like heat-treated carbon steel and 300 series stainless steel, this screw ensures secure and long-lasting fastening. With compliance to ANSI/ASME standards, bright nickel and zinc plated finishes, and suitability for sheet hardness of HRB 80 or less, this screw is ideal for industrial applications requiring precision, durability, and ease of use.

Product Specifications

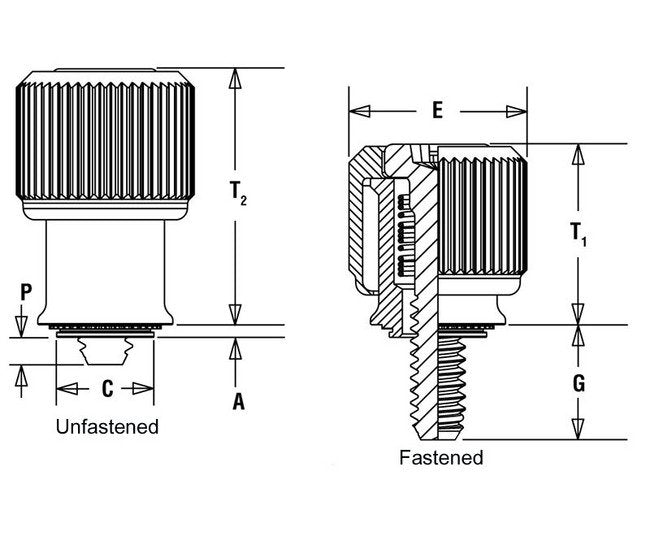

Specifications A Shank Max

0.92 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

7.9 mm

Specifications Driver Size

#2 Phillips

Specifications E 025

13.06 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications G 064

5.84 mm

Specifications Hole Size In Sheet 008

7.92 mm

Specifications Knob Color

Red

Specifications Material Knob

PC/ABS (UL 94V-0, halogen-free)

Specifications Material Retainer

Heat-Treated Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

8.38 mm

Specifications Min Float

0.51 mm

Specifications Min Sheet Thickness

0.92 mm

Specifications P 064

0 mm

Specifications Screw Length Code

Specifications T1 Nom

11.43 mm

Specifications T2 Nom

16.26 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

Knurled Cap - PF11PM
