Red Polypropylene General Purpose Plug for Unified/Straight Threads, 1 1/16-12
Red Polypropylene General Purpose Plug for Unified/Straight Threads, 1 1/16-12
SKU:GEN-33957e
Seal off threads reliably with our Red Polypropylene General Purpose Plug for Unified/Straight Threads. RoHS compliant and versatile in sizing.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Red Polypropylene General Purpose Plug for Unified/Straight Threads, 1 1/16-12
$39.99
Quantity: 1
Claim Your Seller Account
Red Polypropylene General Purpose Plug for Unified/Straight Threads, 1 1/16-12
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Red Polypropylene General Purpose Plug is meticulously designed for Unified/Straight threads, ensuring a secure fit on SAE straight-threaded ports. Featuring a 12-point head for convenient tightening using a screwdriver, socket, or wrench, this plug boasts a molded-in O-Ring style bead that effectively prevents fluid leakage. Its external lip on the flange provides added protection against contaminants, making it ideal for a range of applications. Available in box quantities of 1000, this plug is RoHS compliant and offers Micro-Pack and Mini-Pack options for flexible ordering.
Product Specifications
Additional Information 0
Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 to 1/2.
Manufacturing Notes 0
MOCAP stocks general purpose plugs for Unified/Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
1000
Specifications Color
Red

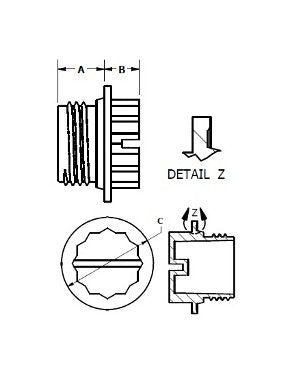

Specifications Flange Outer Diameter Dimension C
1.450 in | 36.8 mm
Specifications Length Dimension A
0.610 in | 15.5 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
20
Specifications Mini Pack Quantity
200
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.310 in | 7.9 mm
Specifications To Fit Standard Thread Size
1 1/16-12
