Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads

Name: Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads
Brand: MOCAP LLC
SKU: GEN-b1e947
Price: 49.99 USD
Availability: OutOfStock

SKU:GEN-b1e947

Secure and leak-proof Red Polypropylene Threaded Plug for Unified/Straight threads with RoHS compliance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Red Polypropylene General Purpose Threaded Plug is engineered for Unified/Straight threads and fittings, ensuring a secure fit and leak-proof seal. Featuring a 12-point head for easy tightening, this plug includes a molded-in O-Ring style bead to prevent fluid leakage. The external lip on the flange seals out contaminants, making it ideal for SAE straight-threaded ports. With dimensions meeting standard thread sizes and RoHS compliance, this plug offers reliability and durability for various applications.

Product Specifications

Additional Information 0

Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 to 1/2.

Manufacturing Notes 0

MOCAP stocks general purpose plugs for Unified/Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

1000

Specifications Color

Red

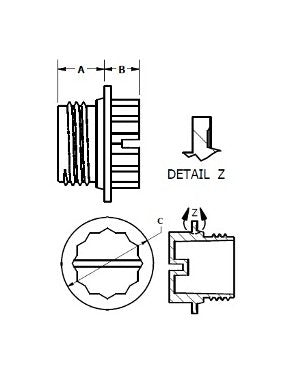

Specifications Flange Outer Diameter Dimension C

1.740 in | 44.2 mm

Specifications Length Dimension A

0.610 in | 15.5 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

200

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.330 in | 8.4 mm

Specifications To Fit Standard Thread Size

1 5/16-12
