Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads - 1 5/8-12 Size

Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads - 1 5/8-12 Size

GEN-3f7140

Seal threaded ports effectively with our RoHS-compliant Red Polypropylene Plug, designed for Unified/Straight threads.

$45.99
$45.99
Sale

Initiate Order

Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads - 1 5/8-12 Size

Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads - 1 5/8-12 Size

$45.99

Quantity: 1

Claim Your Seller Account

Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads - 1 5/8-12 Size

Red Polypropylene General Purpose Threaded Plug for Unified/Straight Threads - 1 5/8-12 Size

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Red Polypropylene General Purpose Threaded Plug is purposefully crafted for Unified/Straight threads and fittings, ensuring a secure seal on SAE straight-threaded ports. Featuring slotted design with a 12-point head for easy tightening, this plug includes a molded-in O-Ring style bead to prevent fluid leakage. Its external lip on the flange effectively blocks contaminants, maintaining part integrity. Ideal for thread sizes ranging from 1/8 to 1/2, this plug is RoHS compliant, enhancing environmental safety in industrial applications.

Product Specifications

Additional Information 0
Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 to 1/2.
Manufacturing Notes 0
MOCAP stocks general purpose plugs for Unified/Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
700
Specifications Color
Red

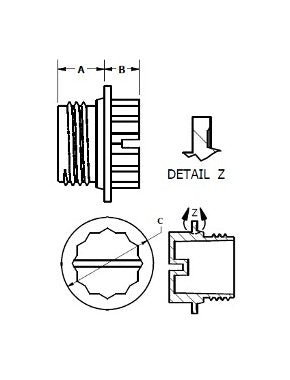

Specifications Flange Outer Diameter Dimension C
2.170 in | 55.1 mm
Specifications Length Dimension A
0.610 in | 15.5 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
14
Specifications Mini Pack Quantity
140
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.330 in | 8.4 mm
Specifications To Fit Standard Thread Size
1 5/8-12
