Red Polypropylene Square Head Plug for 3/8-18 NPT Threads

Name: Red Polypropylene Square Head Plug for 3/8-18 NPT Threads
Brand: MOCAP LLC
SKU: SQU-f109cc
Price: 24.99 USD
Availability: OutOfStock

SKU:SQU-f109cc

RoHS-compliant Red Poly Square Head Plug for 3/8-18 NPT threads offers top-notch protection and masking capabilities.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

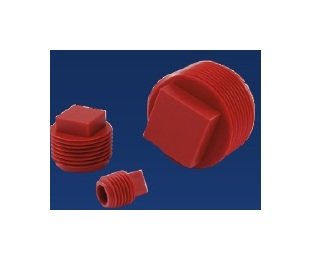

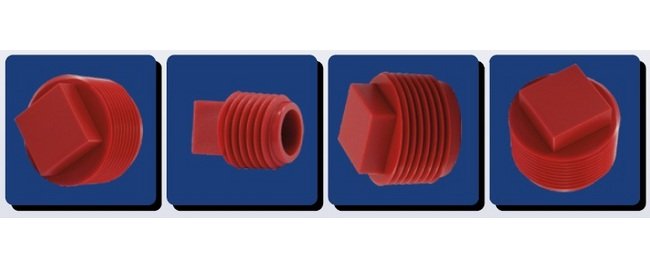

Ideal for NPT threads, our Red Polypropylene Square Head Plug provides superior protection during handling and low-pressure testing. RoHS compliant and precision-designed, it safeguards components from moisture and damage in various applications. With convenient Micro-Pack and Mini-Pack options available, ensure effective masking and securement.

Product Specifications

Features 0

Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating.

Manufacturing Notes 0

MOCAP stocks square head plugs for NPT threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Applications

Masking

Specifications Box Quantity

4000

Specifications Color

Red

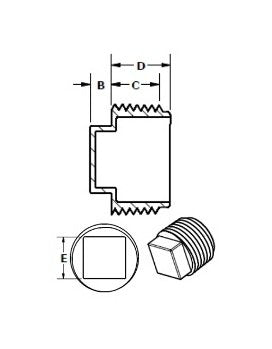

Specifications Head Size Dimension E

0.440 in | 11.2 mm

Specifications Head Type

Square

Specifications Length Dimension D

0.490 in | 12.4 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

800

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.250 in | 6.4 mm

Specifications Threaded Area Length Dimension C

0.420 in | 10.7 mm

Specifications To Fit Npt Thread Size

3/8-18

Red Polypropylene Square Head Plug for 3/8-18 NPT Threads
