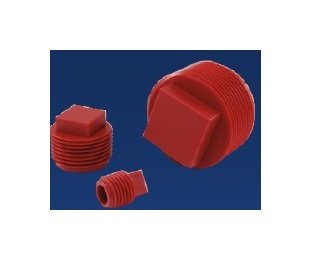

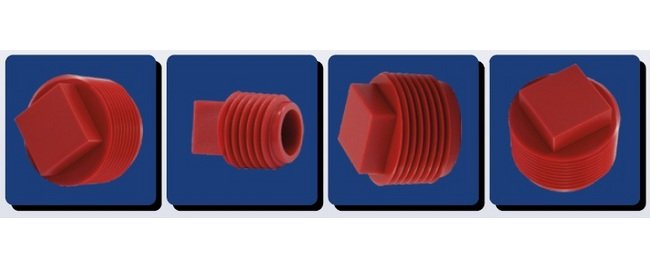

Red Polypropylene Square Head Plug for NPT Thread Protection

Red Polypropylene Square Head Plug for NPT Thread Protection

SQU-ea832d

Protect NPT threads with precision using the Red Polypropylene Square Head Plug. RoHS compliant for industrial-grade thread protection.

$39.99
$39.99
Sale

Initiate Order

Red Polypropylene Square Head Plug for NPT Thread Protection

Red Polypropylene Square Head Plug for NPT Thread Protection

$39.99

Quantity: 1

Claim Your Seller Account

Red Polypropylene Square Head Plug for NPT Thread Protection

Red Polypropylene Square Head Plug for NPT Thread Protection

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Red Polypropylene Square Head Plug is a reliable solution for protecting NPT threads during low-pressure testing, processing, and shipping. Designed to fit NPT threads from 1/8-27 to 1 1/2-11 1/2, this plug effectively shields threaded components from moisture, dust, and damage. Its RoHS compliance ensures high-quality standards, making it suitable for industrial applications requiring precise masking during painting and plating processes.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating.
Manufacturing Notes 0
MOCAP stocks square head plugs for NPT threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Applications
Masking
Specifications Box Quantity
6000
Specifications Color
Red

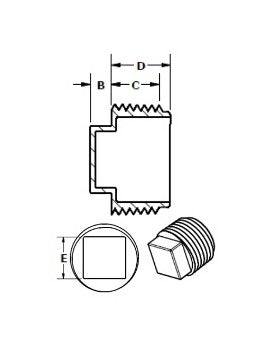

Specifications Head Size Dimension E
0.280 in | 7.1 mm
Specifications Head Type
Square
Specifications Length Dimension D
0.370 in | 9.4 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
120
Specifications Mini Pack Quantity
1200
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.250 in | 6.4 mm
Specifications Threaded Area Length Dimension C
0.290 in | 7.4 mm
Specifications To Fit Npt Thread Size
1/8-27
