Red Polypropylene Square Head Plug for NPT Threads - 1 1/2-11 1/2

Red Polypropylene Square Head Plug for NPT Threads - 1 1/2-11 1/2

SQU-598701

Red Polypropylene Square Head Plug for NPT Threads - Protects threaded components during production & storage.

$49.99
$49.99
Sale

Initiate Order

Red Polypropylene Square Head Plug for NPT Threads - 1 1/2-11 1/2

Red Polypropylene Square Head Plug for NPT Threads - 1 1/2-11 1/2

$49.99

Quantity: 1

Claim Your Seller Account

Red Polypropylene Square Head Plug for NPT Threads - 1 1/2-11 1/2

Red Polypropylene Square Head Plug for NPT Threads - 1 1/2-11 1/2

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Red Polypropylene Square Head Plug for NPT Threads is a reliable solution for protecting threaded components during production, shipping, and storage. Designed to fit NPT threads from 1/8-27 to 1 1/2-11 1/2, this plug offers superior moisture, dust, and damage protection. Crafted to RoHS standards, this plug is ideal for low-pressure testing and masking applications during painting and plating processes. With a square head design for easy handling, this plug ensures a secure fit to keep ports safeguarded at all times.

Product Specifications

Features 0
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating.
Manufacturing Notes 0
MOCAP stocks square head plugs for NPT threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Applications
Masking
Specifications Box Quantity
500
Specifications Color
Red

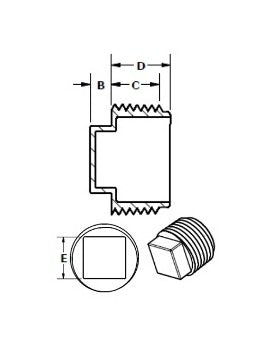

Specifications Head Size Dimension E
1.250 in | 31.8 mm
Specifications Head Type
Square
Specifications Length Dimension D
0.980 in | 24.9 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
10
Specifications Mini Pack Quantity
100
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.380 in | 9.7 mm
Specifications Threaded Area Length Dimension C
0.830 in | 21.1 mm
Specifications To Fit Npt Thread Size
1 1/2-11 1/2
