Red Polypropylene Square Head Plug for NPT Threads 1/4-18
Red Polypropylene Square Head Plug for NPT Threads 1/4-18
SKU:SQU-93d9a2
Protect NPT threads with the Red Polypropylene Square Head Plug. RoHS compliant, ideal for production and storage.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Red Polypropylene Square Head Plug for NPT Threads 1/4-18
$29.99
Quantity: 1
Claim Your Seller Account
Red Polypropylene Square Head Plug for NPT Threads 1/4-18
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

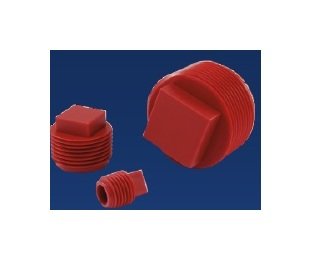

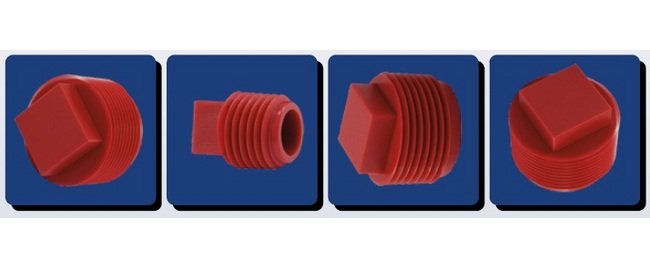

The Red Polypropylene Square Head Plug for NPT Threads 1/4-18 by MOCAP offers a reliable solution for protecting threaded components during various stages of production, shipping, and storage. Designed with a square head for easy installation, this plug effectively seals NPT threads to prevent moisture, dust, and damage. It serves as a versatile masking tool for painting and plating processes. Compliant with RoHS standards, this plug is ideal for low-pressure testing and in-house processing, safeguarding your equipment and ensuring operational efficiency.
Product Specifications
Features 0
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating.
Manufacturing Notes 0
MOCAP stocks square head plugs for NPT threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Applications
Masking
Specifications Box Quantity
6000
Specifications Color
Red

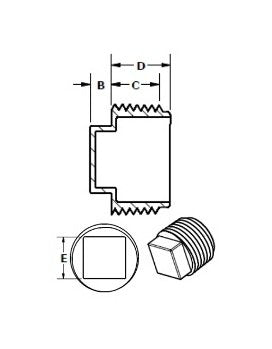

Specifications Head Size Dimension E
0.380 in | 9.7 mm
Specifications Head Type
Square
Specifications Length Dimension D
0.430 in | 10.9 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
120
Specifications Mini Pack Quantity
1200
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.250 in | 6.4 mm
Specifications Threaded Area Length Dimension C
0.350 in | 8.9 mm
Specifications To Fit Npt Thread Size
1/4-18
