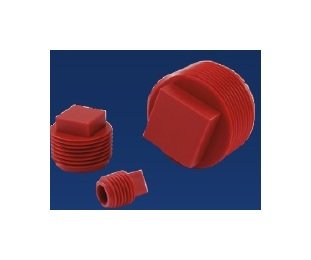

• Red Polypropylene Square Head Plug for NPT Threads 3/4-14 - Image 1
  • Red Polypropylene Square Head Plug for NPT Threads 3/4-14 - Image 2

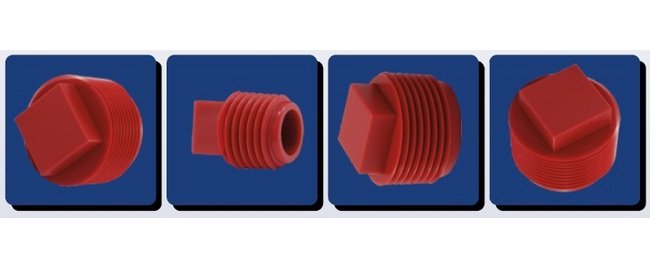

  • Red Polypropylene Square Head Plug for NPT Threads 3/4-14 - Image 3
1 3
MOCAP LLC →

Red Polypropylene Square Head Plug for NPT Threads 3/4-14

Red Polypropylene Square Head Plug for NPT Threads 3/4-14

SQU-3eb1af

Protect threaded components with precision using the Red Polypropylene Square Head Plug for NPT Threads 3/4-14 by MOCAP. Compliant with RoHS standards, ideal for various industrial uses.

$29.99
$29.99
Sale

Initiate Order

Red Polypropylene Square Head Plug for NPT Threads 3/4-14

Red Polypropylene Square Head Plug for NPT Threads 3/4-14

$29.99

Quantity: 1

Claim Your Seller Account

Red Polypropylene Square Head Plug for NPT Threads 3/4-14

Red Polypropylene Square Head Plug for NPT Threads 3/4-14

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Red Polypropylene Square Head Plug for NPT Threads 3/4-14 by MOCAP is a reliable solution designed to protect threaded components from moisture, dust, and damage during production, shipping, and storage. These plugs, compliant with RoHS standards, are ideal for low-pressure testing, in-house processing, masking during painting, and plating applications. Available in Mini-Pack, Micro-Pack, and Box quantities, this plug is a versatile choice for various industrial needs.

Product Specifications

Features 0
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating.
Manufacturing Notes 0
MOCAP stocks square head plugs for NPT threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Applications
Masking
Specifications Box Quantity
2000
Specifications Color
Red

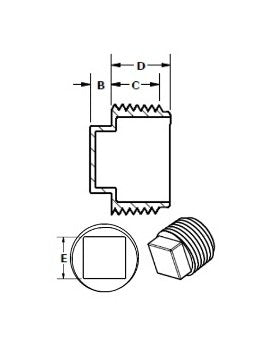

Specifications Head Size Dimension E
0.620 in | 15.7 mm
Specifications Head Type
Square
Specifications Length Dimension D
0.640 in | 16.3 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
40
Specifications Mini Pack Quantity
400
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.250 in | 6.4 mm
Specifications Threaded Area Length Dimension C
0.520 in | 13.2 mm
Specifications To Fit Npt Thread Size
3/4-14
