Red Polypropylene Unified/Straight Thread General Purpose Plug

Name: Red Polypropylene Unified/Straight Thread General Purpose Plug
Brand: MOCAP LLC
SKU: GEN-f8eaa0
Price: 149.99 USD
Availability: OutOfStock

SKU:GEN-f8eaa0

Precision-engineered Red Polypropylene plug for 3/4-16 standard threads, providing leak-proof seal with O-Ring bead and contaminant protection.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Red Polypropylene Unified/Straight Thread General Purpose Plug by MOCAP is engineered for precision fit on 3/4-16 standard threads. Featuring a 12-point head design for secure fastening using various tools, this plug ensures a leak-proof seal with its molded O-Ring bead. With a flange that prevents contaminants, this plug offers reliable protection for SAE straight-threaded ports, making it ideal for industrial applications. MOCAP's GPU Series delivers quality performance and durability, meeting RoHS compliance standards.

Product Specifications

Additional Information 0

Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 to 1/2.

Manufacturing Notes 0

MOCAP stocks general purpose plugs for Unified/Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Box Quantity

3000

Specifications Color

Red

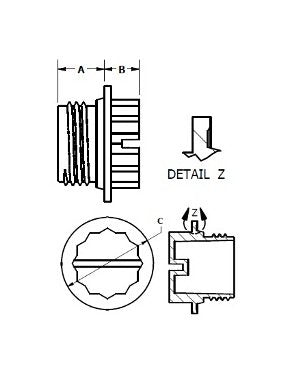

Specifications Flange Outer Diameter Dimension C

1.020 in | 25.9 mm

Specifications Length Dimension A

0.410 in | 10.4 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

600

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.310 in | 7.9 mm

Specifications To Fit Standard Thread Size

3/4-16
