Red Polypropylene Unified/Straight Thread General Purpose Plugs
Red Polypropylene Unified/Straight Thread General Purpose Plugs
SKU:GEN-f84f4c
Seal SAE straight-threaded ports with precision using these Red Polypropylene General Purpose Plugs by MOCAP. Designed to prevent fluid leakage and secure against contaminants, they offer reliable sealing for threads 1/8 to 1/2.
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Red Polypropylene Unified/Straight Thread General Purpose Plugs
$169.99
Quantity: 1
Claim Your Seller Account
Red Polypropylene Unified/Straight Thread General Purpose Plugs
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Red Polypropylene Unified/Straight Thread General Purpose Plugs by MOCAP are expertly designed to seal SAE straight-threaded ports effectively. Featuring a 12-point head for easy tightening with tools, these plugs prevent fluid leakage with a molded-in O-Ring style bead. The external lip on the flange ensures a secure fit, keeping contaminants at bay. Ideal for plugging threads ranging from 1/8 to 1/2, these plugs offer reliable sealing and protection against debris, making them a must-have solution for industrial applications.
Product Specifications
Additional Information 0
Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 to 1/2.
Manufacturing Notes 0
MOCAP stocks general purpose plugs for Unified/Straight Threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
6000
Specifications Color
Red

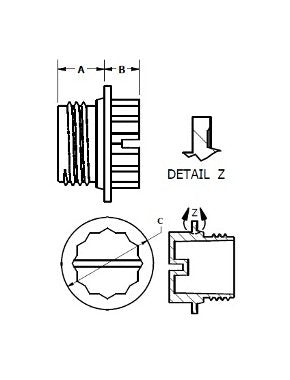

Specifications Flange Outer Diameter Dimension C
0.730 in | 18.5 mm
Specifications Length Dimension A
0.340 in | 8.6 mm
Specifications Material
Polypropylene
Specifications Micro Pack Quantity
120
Specifications Mini Pack Quantity
1200
Specifications Standards
RoHS Compliant
Specifications Stem Height Dimension B
0.300 in | 7.6 mm
Specifications To Fit Standard Thread Size
1/2-20
