Red Silicone Flange Cap - 0.220 Inch ID, 0.340 Inch OD, 500 Quantity

Name: Red Silicone Flange Cap - 0.220 Inch ID, 0.340 Inch OD, 500 Quantity
Brand: Custom Fabricating & Supplies
SKU: SIL-2f1798
Price: 29.99 USD
Availability: OutOfStock

SKU:SIL-2f1798

High-quality Red Silicone Flange Cap with 0.220" ID, 0.340" OD for industrial masking needs.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

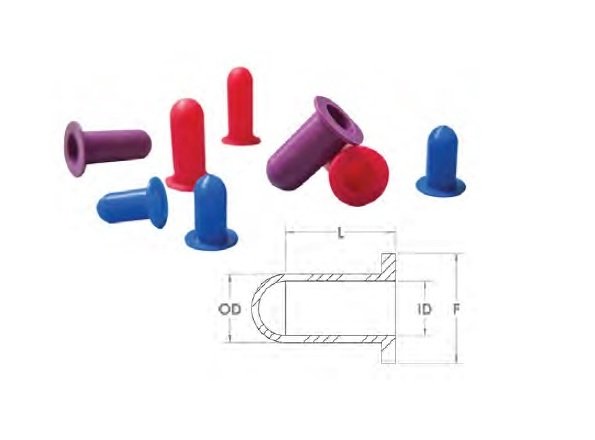

The FC220-0591 Red Silicone Flange Cap is a high-quality solution for masking studs and pems in industrial settings. With an inner diameter of 0.220 inches and a temperature rating of 600°F, this cap offers exceptional heat resistance. Its flexible material allows for conforming to irregular shapes, while the color-coded design facilitates easy identification. Perfect for powder coating, e-coating, and wet painting applications, this cap is reusable and versatile. Compliant with industry standards, it meets the stringent requirements of federal procurement and FAR regulations.

Product Specifications

Specifications Color

Red

Specifications Features

Temperature Rating 600 Â°F/315 Â°C Recommended for Masking Studs and Pems with a Perimeter for Grounding Flexible Material Allows Cap to Conform to Irregular Shapes May be Inverted as a Plug Top of Cap is Rounded, not Flat Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating

Specifications Flange

0.591 Inch | 15.01 mm

Specifications Inner Diameter Id

0.220 Inch | 5.59 mm

Specifications Length

1.000 Inch | 25.40 mm

Specifications Outer Diameter Od

0.340 Inch | 8.64 mm

Specifications Quantitybag

500
