Red Spec Mini Audio Transformers
Red Spec Mini Audio Transformers
SKU:AUD-1d4e2d
Enhance audio precision with Red Spec Mini Audio Transformers. Meet Mil-T-27E standards. Perfect for Mil-Aero, Medical, and Pro Audio. Frequency response: ±2.0 dB, 300 Hz to 100 kHz.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Red Spec Mini Audio Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Red Spec Mini Audio Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Transform your audio projects with precision and durability using our Red Spec Miniature Impedance Matching Transformers. Designed to meet Mil-T-27E standards, these transformers offer a frequency response range of ±2.0 dB from 300 Hz to 100 kHz. With matching impedance of 10,000 Ohm Center Tap on both primary and secondary sides, these transformers ensure optimal audio performance. The epoxy molded case, gold-plated leads, and UL94 V-0 rated construction guarantee exceptional operation and reliability. Ideal for Mil-Aero, Medical, and Pro Audio applications, these transformers provide high-quality audio transmission across diverse settings.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
1000 Ohm
Specifications Dc Resistance Secondary
1300.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E

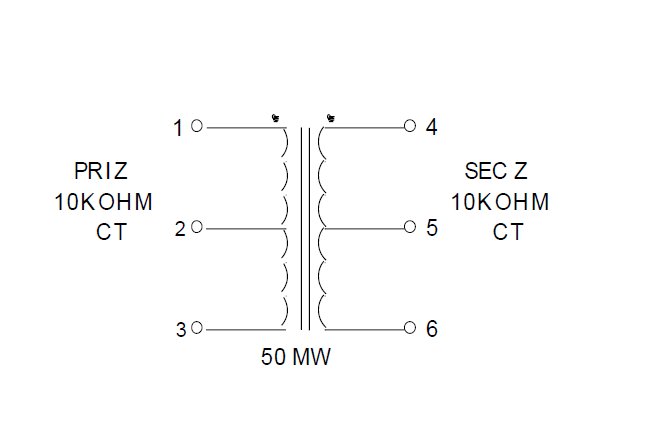

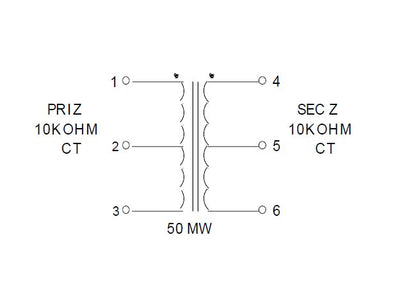

Specifications Matching Impedance Primary
10000 Ohm Center Tap
Specifications Matching Impedance Secondary
10000 ohm Center Tap
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
1.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
1.0:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Transformer Contact Type
Center Tap
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

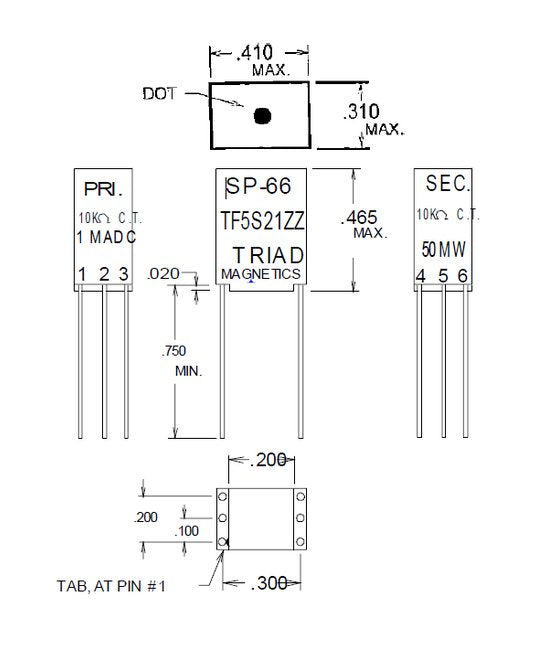

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
