Enhance your audio designs with Triad's high reliability Miniature Impedance Matching Transformers - Red Spec. These transformers, meeting Mil-T-27E standards, offer exceptional durability and precision for a wide range of applications including Mil-Aero, Medical, and Pro Audio. With features like precision-spaced plug-in terminals, gold plated leads, and exceptional operation from 300 Hz to 100 kHz, these transformers provide reliability and high performance. RoHS compliant since February 2016, ensuring adherence to environmental standards.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
15.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E

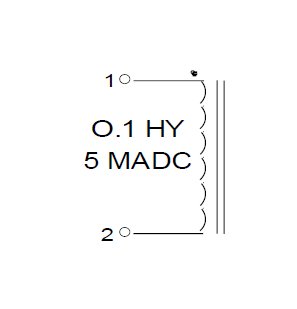

Specifications Matching Inductance Primary
0.1 H
Specifications Max Primary Unbalanced Dc Current
5.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Operating Temperature
-40 to 85 ºC
Technical Notes 0

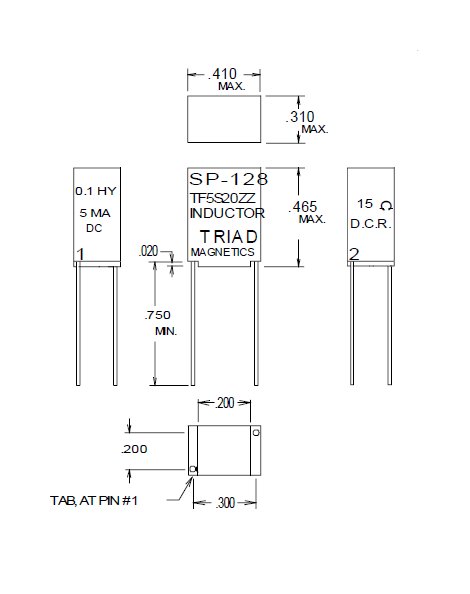

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
