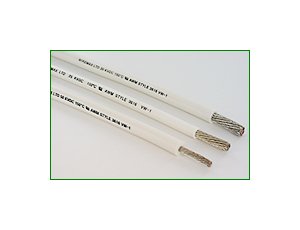

Red UL 3616 Wire 0.336in Conductor Diameter
Red UL 3616 Wire 0.336in Conductor Diameter
SKU:WIR-24179f
High voltage, flexible Red UL 3616 Wire with ozone resistance and VW-1 flame test compliance. Ideal for various high voltage applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Red UL 3616 Wire 0.336in Conductor Diameter
$39.99
Quantity: 1
Claim Your Seller Account
Red UL 3616 Wire 0.336in Conductor Diameter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Red UL 3616 Wire boasts a high voltage capacity ranging from 20 KVDC to 60 KVDC, providing exceptional flexibility and resilience with 8 AWG through 2 AWG conductors. Designed to be ozone and corona resistant, this wire meets the stringent VW-1 flame test standard. Ideal for a wide array of applications including heaters, furnaces, ovens, dryers, motors, generators, and electronic equipment with high voltage and current demands. This wire features a 0.336-inch conductor diameter and operates effectively at a temperature of 150°C. Manufactured by Wiremax and compliant with UL-AWM File Number E174208, it adheres to the standard construction requirements for UL 3616.
Product Specifications
Applications 0
HeatersFurnacesOvensDryersMotorsGeneratorsElectronic Equipment Requiring High Voltage and High Current RequirementsCorona Treating Equipment
Note 0
Standard Construction for UL 3616.
Specifications Color
Red
Specifications Conductorstranding Construction
133/0.0223
Specifications Conductor Diameter
0.336 in
Specifications Conductor Size
2
Specifications Direct Current Dc Voltage
50 kV
Specifications Manufacturer
Wiremax
Specifications Nominal Diameter
0.618 in
Specifications Temperature
150 ºC
Specifications Ul Awm File Number
E174208
