Reduced Wall Aluminum Flexible Metal Conduit

Name: Reduced Wall Aluminum Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-f22333
Price: 59.99 USD
Availability: OutOfStock

SKU:FLE-f22333

UL Listed Reduced Wall Aluminum Flexible Metal Conduit for versatile electrical installations.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

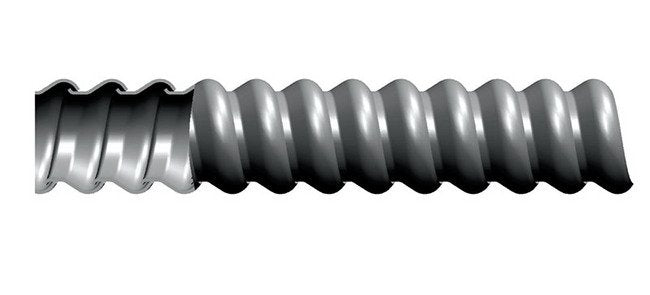

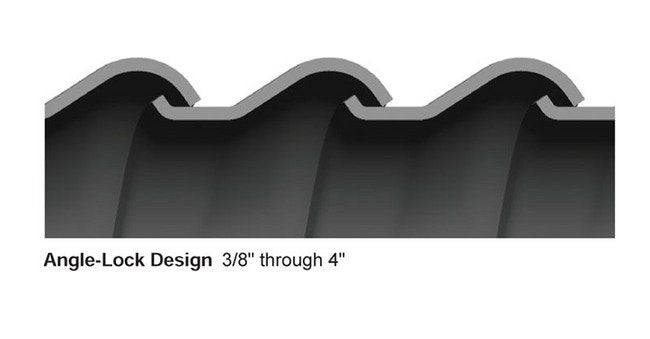

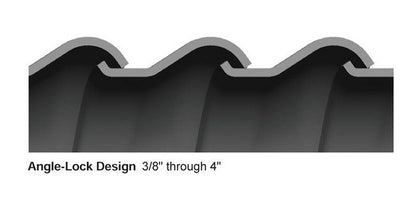

The Reduced Wall Aluminum Flexible Metal Conduit (FMC) is a reliable solution for electrical installations requiring flexibility and durability. Made of continuously interlocked aluminum strip, this conduit is UL listed in sizes ranging from 3/8" to 4". With an inside diameter of 0.812 to 0.835 inches and an approximate bend radius of 4.0 inches, it offers high crush resistance. This versatile conduit is lightweight, easy to install, and suitable for use in various applications, meeting UL and NEC standards for safety and performance.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

12.5 lbs | 5.67 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

5603-22-00 | 69428 | ABR-12 | RWA-3/4

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.812 to 0.835 in | 20.625 to 21.209 mm

Specifications Jacket Material

None

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

1.045 to 1.105 in | 26.543 to 28.067 mm

Specifications Packaging

Standard Coils

Specifications Type

RWA

Reduced Wall Aluminum Flexible Metal Conduit
