Reduced Wall Aluminum Flexible Metal Conduit (FMC) - UL Listed

Name: Reduced Wall Aluminum Flexible Metal Conduit (FMC) - UL Listed
Brand: Anamet Electrical, Inc.
SKU: FLE-8ca7a0
Price: 159.99 USD
Availability: OutOfStock

SKU:FLE-8ca7a0

Enhance electrical pathways with Type RWA Reduced Wall FMC – UL Listed, crush-resistant & heat-proof up to +500°F. Compliant with UL & NEC.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

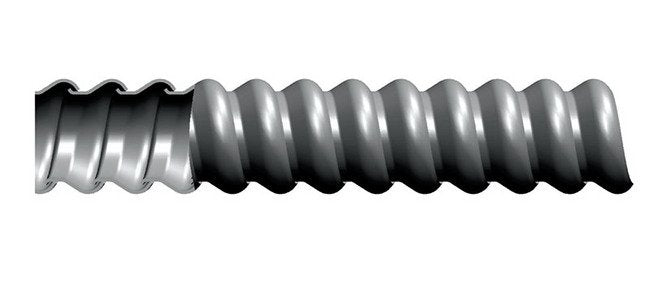

Upgrade your electrical installations with the Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC). This UL listed conduit, with an electrical trade size of 2 inches, offers superior crush resistance and a high-temperature tolerance of up to +500°F. Ideal for exposed, concealed, and specific applications like elevators and escalators. Compliant with UL certifications, NEC standards (Article 348), and suitable for various industrial settings.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

10 in | 254 mm

Specifications Approx Weight Per 100 Ft

35 lbs | 15.88 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

55-09-28-01 | 5607-22-00 | 69462 | ABR-16 | RWA-2

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

2.000 to 2.080 in | 50.800 to 52.832 mm

Specifications Jacket Material

None

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

2.350 to 2.450 in | 59.690 to 62.230 mm

Specifications Packaging

Standard Coils

Specifications Type

RWA

Reduced Wall Aluminum Flexible Metal Conduit (FMC) - UL Listed
