Reduced Wall Aluminum Flexible Metal Conduit (Type RWA)
Reduced Wall Aluminum Flexible Metal Conduit (Type RWA)
SKU:FLE-47ff33
Durable Reduced Wall Aluminum Flexible Metal Conduit (Type RWA) for high-temperature applications. Easy to install and compliant with UL standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Reduced Wall Aluminum Flexible Metal Conduit (Type RWA)
$49.99
Quantity: 1
Claim Your Seller Account
Reduced Wall Aluminum Flexible Metal Conduit (Type RWA)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

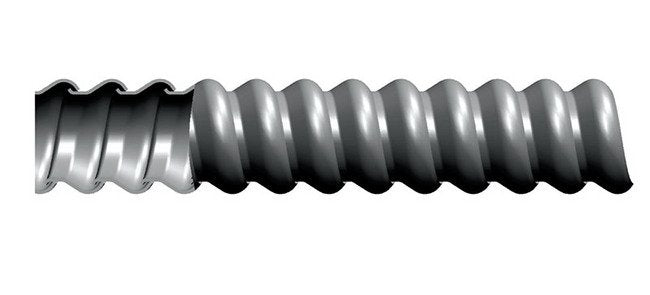

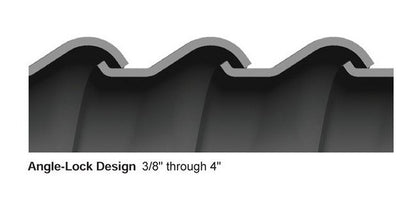

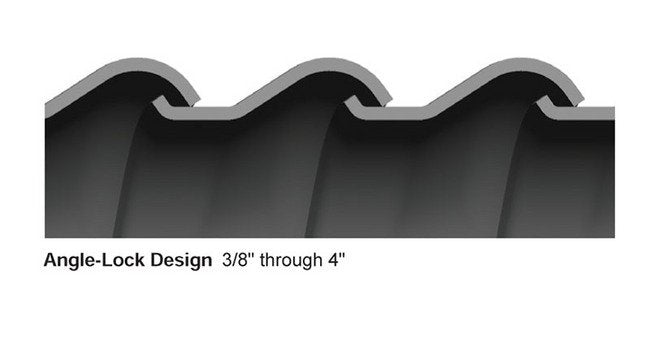

The Reduced Wall Aluminum Flexible Metal Conduit (Type RWA) is a durable and flexible conduit that meets the highest industry standards. Made of continuously interlocked aluminum strip, this UL Listed conduit is available in an electrical trade size of 1/2 inch. It comes in a standard 50 ft coil and features an inside diameter ranging from 0.625 to 0.645 inches, providing ease of installation with standard flexible metal conduit connectors. With a crush-resistant design and the ability to withstand temperatures up to 500°F, this conduit is ideal for both exposed and concealed installations in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature
Installation 0
Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.
Nec Articles 0
Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
9.5 lbs | 4.31 kg
Specifications Core Material
Aluminum
Specifications Cross Reference
5602-24-00 | 69419 | ABR-11 | RWA-1/2
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
UL Certification
Specifications Inside Diameter
0.625 to 0.645 in | 15.875 to 16.383 mm
Specifications Jacket Material
None
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
0.860 to 0.920 in | 21.844 to 23.368 mm
Specifications Packaging
Standard Coils
Specifications Type
RWA
