Reduction Union Fitting - 1/2in to 3/8in Diameter, Alloy Steel
Reduction Union Fitting - 1/2in to 3/8in Diameter, Alloy Steel
SKU:SRU-64ac0e
Enhance industrial piping with precision-fit SRUI Series Reducing Union for safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reduction Union Fitting - 1/2in to 3/8in Diameter, Alloy Steel
$29.99
Quantity: 1
Claim Your Seller Account
Reduction Union Fitting - 1/2in to 3/8in Diameter, Alloy Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

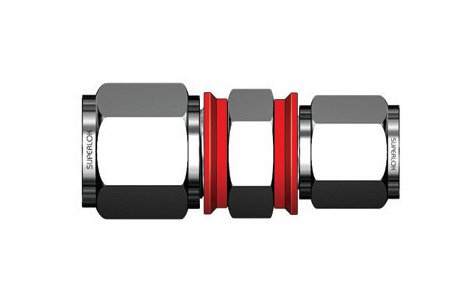

Upgrade your industrial piping system with the SRUI Series 1/2 Inch to 3/8 Inch Reduction Union. Crafted from high-quality Alloy 625, 825, C-276, and more, this union ensures a perfect compression fit, eliminating over- or under-tightening issues. Increase safety, enhance productivity, and cut costs with the patented check ring design by BMT. Ideal for valve connections in high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

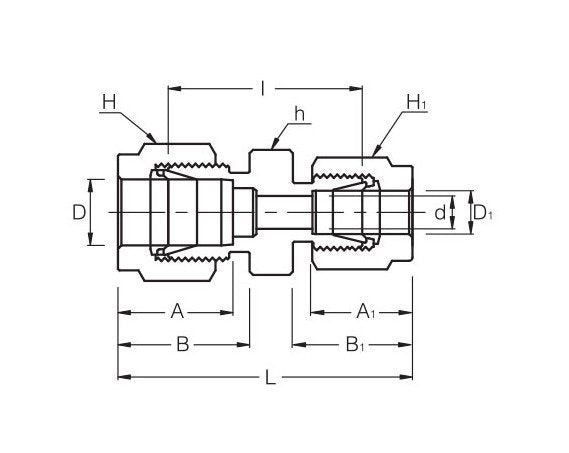

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension A1
16.76 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension B1
19.30 mm
Technical Specs Dimension I
30.98 mm
Technical Specs Dimension L
48.51 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Tube Outside Diameter D1
3/8 in
Technical Specs Width Across Flat H
7/8 in
Technical Specs Width Across Flat H1
11/16 in
