Reinforced 200A Rain Tight Safety Lock Panel
Reinforced 200A Rain Tight Safety Lock Panel
SKU:HIG-5bdc8e
Ensure secure high current connections with this 200A Rain Tight Safety Lock Panel from Connectronics.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Reinforced 200A Rain Tight Safety Lock Panel
$599.99
Quantity: 1
Claim Your Seller Account
Reinforced 200A Rain Tight Safety Lock Panel
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Reinforced 200A Rain Tight Safety Lock Panel from the Safety Lock Series Electrical Connectors is a robust solution for secure power distribution. With a current rating of 200A, this panel is designed for high-stakes environments, providing a 'first in/last out' ground safety feature to prevent improper connections. Ideal for emergency power situations and stationary panel boards, it meets stringent military specifications for grounded delta systems and is UL listed for reliability. The panel's durable construction and innovative design make it a reliable choice for industries such as entertainment, commercial construction, shipping, mining, and military operations.
Product Specifications
Applications 0
Power Distribution Systems for permanent, temporary or emergency field usage of high power generators by the entertainment, commercial construction, shipping, mining industries, and oil drilling as well as military operations.
Note 0
Rain tight panels are supplied with rubber panel gasket and threaded environmental covers, with lanyard
Specifications Additional Information

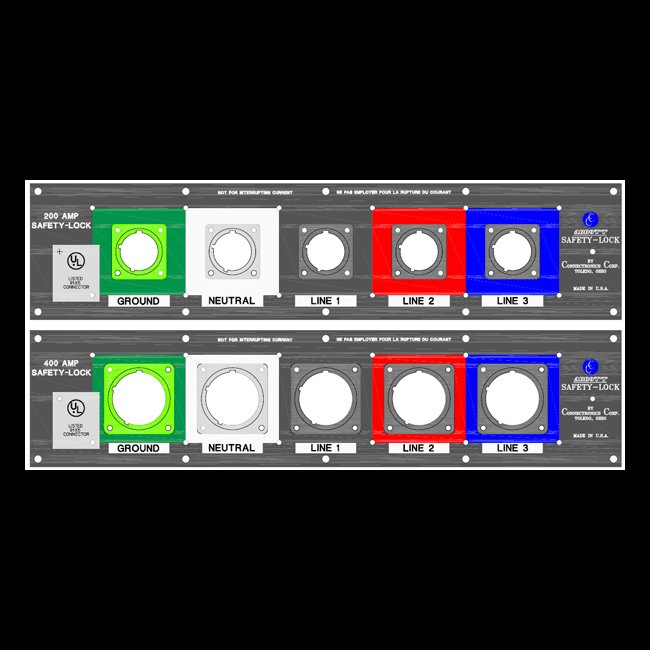

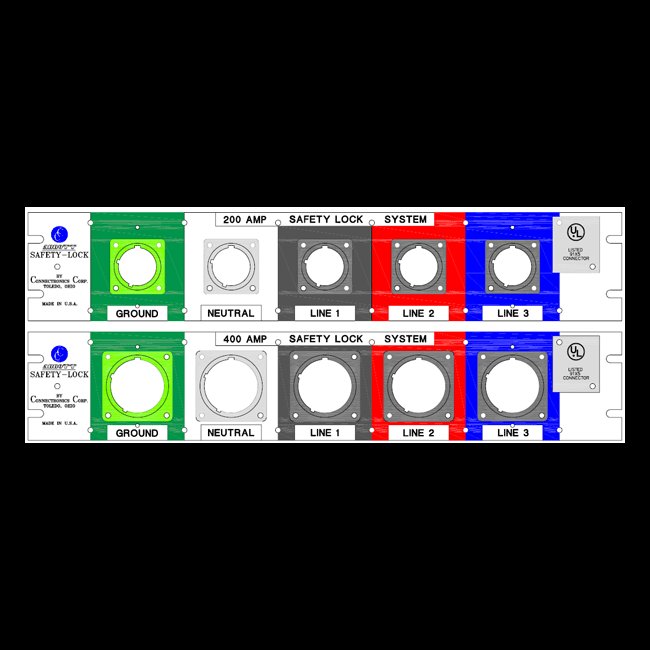

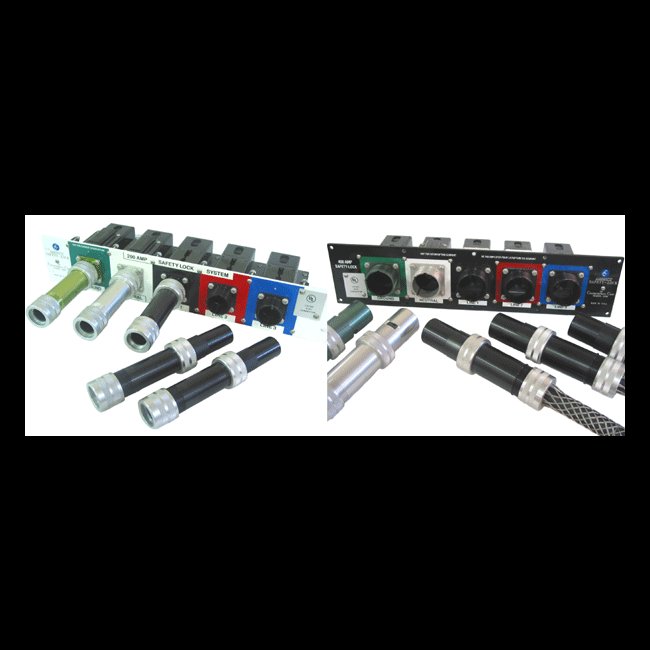

Safety lock can be installed in stationary panel boards or used in the field. plugs can be mated and separated rapidly, which makes the system portable and efficient. It requires only standard tools for initial connections, and needs no special maintenance.In the field this system is used with portable generators, arena and stadium sound devices, on-location filming. temporary sports lighting, dockside shipboard power, military operations, road and bridge construction, commercial construction. mining and oil drilling locations, and other similar permanent, temporary or emergency uses.The safety lock system features machined aluminum shells with a corrosion resistant anodized finish. The standard size 3 1/2" x 19" input and output panels are ready to be rack mounted. The system can also be ordered in weather resistant configurations.The connections have a large, self-wiping contact area and silver plated construction to control temperature rise typically associated with high current connections. Optional basket weave grips fit over the wires and relieve the strain on the plug assemblies so that tension cannot be transmitted to the connection.Safety lock has been stress tested and proven reliable under severe conditions time and time again. it is designed to meet military specifications for grounded delta systems. The safety lock power distribution system is patent protected and UL listed.Connectronics also designs and manufactures additional high current and high voltage solutions to suit every need. Please contact the factory if your needs go above and beyond the ordinary. Let connectronics design a custom solution for you.
Specifications Cable Grommet Material
Black Ethylene Propylene Diene Monomer (EPDM) Rubber
Specifications Current Rating
200 A
Specifications Environmental Temperature
-65 to +150 ºF
Specifications Features
UL listed and Patent Protected600 VDC Operating VoltageTemperature Range -65ºF to +150ºFSea Level to 10,000 Ft. OperationField or Factory Assembled2/0 & 4/0 CableMinimal T-Rise200 & 400 AMP VersionsPins & sockets designed for self-cleaning wiping action
Specifications Length
16 in
Specifications Number Of Outlets
Two Line, One Ground, One Neutral Outlets
Specifications Panel Style
Panel Input (Pins)
Specifications Panel System
Rain Tight

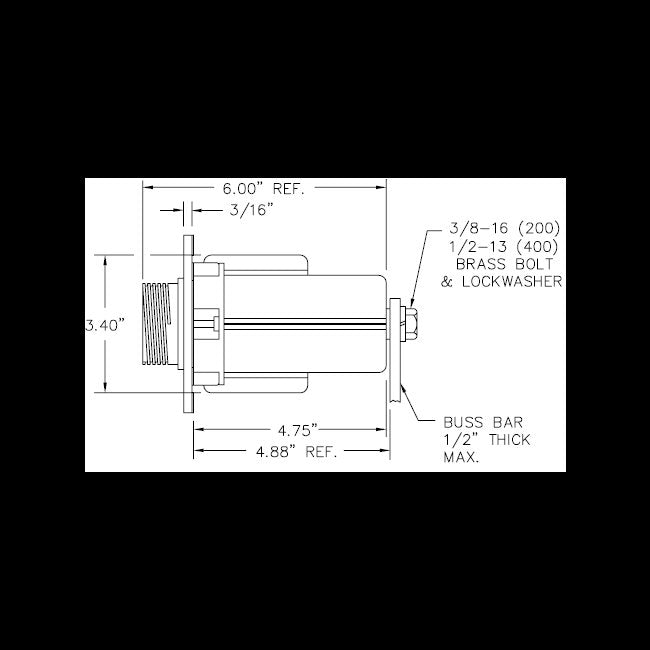

Specifications Panel Termination
Bus Bar (Bolt and Washer)
Specifications Pin Contacts Material
Leaded copper alloy C18700, Silver plated per QQ-S-365.
Specifications Plastic Hardware Material
Polycarbonate Resin
Specifications Position Of Ground Contact On Panel
Right
Specifications Sea Level Altitude
0 to 10,000 ft
Specifications Shell Coupling Nut And Related Hardware Material
Aluminum alloy 6061-T6 per QQ-A-225/8. Color coded anodized per MIL-A-8625.
Specifications System Type
Panel Only
Specifications Wires
2/0 (259/23) 0.419" Ã Rope-stranded bare copper conductor, type W, CV curd, 0.820" Ã over jacket.
