Reliable Model 200 BPM Jib Crane
Reliable Model 200 BPM Jib Crane
SKU:REL-6e1fac
Reliable Model 200 BPM Jib Crane - 500 lbs. capacity, 14ft span, precise material handling for heavy-duty use.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Reliable Model 200 BPM Jib Crane
$2,999.99
Quantity: 1
Claim Your Seller Account
Reliable Model 200 BPM Jib Crane
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

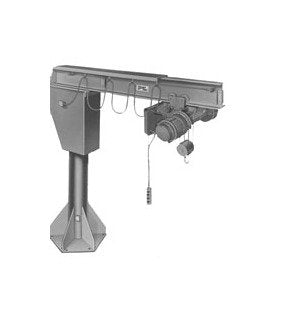

The Reliable Model 200 BPM Base Plate Mounted Jib Crane is engineered for standard duty applications, offering a maximum capacity of 500 lbs. With a durable 8-inch boom size and a span of 14 feet, this crane ensures efficient material handling. Designed for precision and safety, it restricts boom deflection, making hoist travel smooth and secure. Suitable for heavy-duty and high-cycle use, this crane is versatile for various industrial settings.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

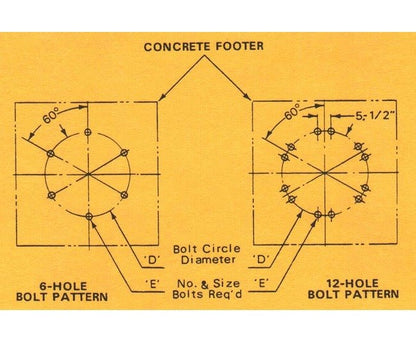

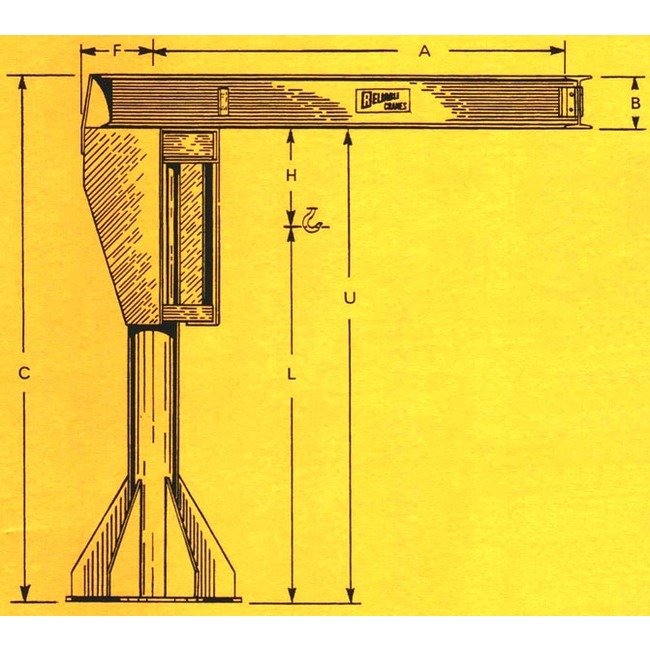

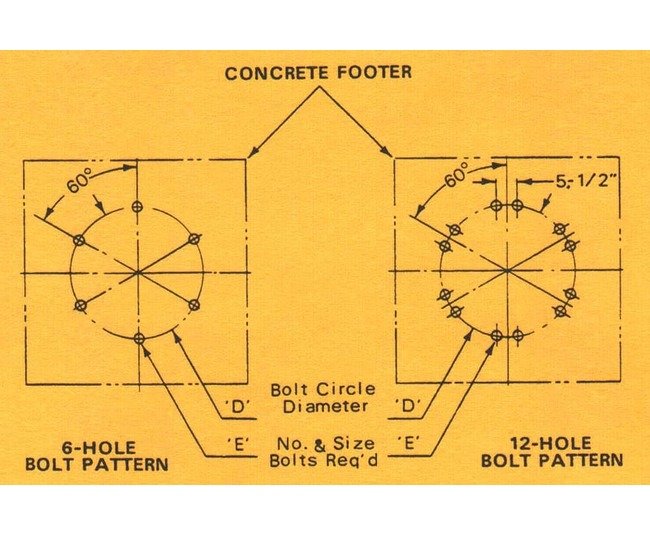

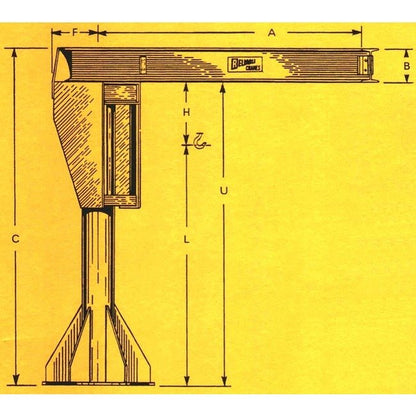

Specifications Base Plate Size D
36 inches
Specifications Bolt Circle Diameter D
28 inches
Specifications Bolt Diameter E
3/4 inches
Specifications Boom Size B
8 inches
Specifications Capacity
500 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
10'-9"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
6
Specifications Span A
14'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1035 lbs.
