Reliance Electric 204 Bearing Stationary Switches Set
Reliance Electric 204 Bearing Stationary Switches Set
SKU:MOT-d56e4e
Reliance Electric 204 Bearing Stationary Switches Set for motor repairs with 6204 bearings.
Regular price
$31.90
Regular price
Sale price
$31.90
Unit price
per
Initiate Order
Reliance Electric 204 Bearing Stationary Switches Set
$31.90
Quantity: 1
Claim Your Seller Account
Reliance Electric 204 Bearing Stationary Switches Set
$31.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Reliance Electric 204 Bearing Stationary Switches Set is specifically designed for motor repairs featuring 6204 bearings. Manufactured by Reliance Electric with part number 77B15, these switches ensure optimal motor performance. With LH contact as N.O. and RH contact as D.T., along with 5/16 in contact diameter and NO jumper configuration, this set includes 2 sets with 3 3/16 in mounting centers. The dimensions of the switches are 2 in hole diameter, 2 1/2 in button centers, and 4 1/4 in length x 4 7/16 in width. Note: While the appearance may vary, these TORQ replacement parts are engineered to seamlessly fit and function within motors.
Product Specifications
Contacts Contact Diameter
5/16 in
Contacts Jumper
NO
Contacts Lh Contact
N.O.
Contacts Mounting Centers
3 3/16 in
Contacts Of Sets
2
Contacts Rh Contact
D.T.
Dimensions Button Centers
2 1/2 in
Dimensions Hole Diameter
2 in
Dimensions Length X Width
4 1/4 in | 4 7/16 x 4 3/8 in
Important Note 0

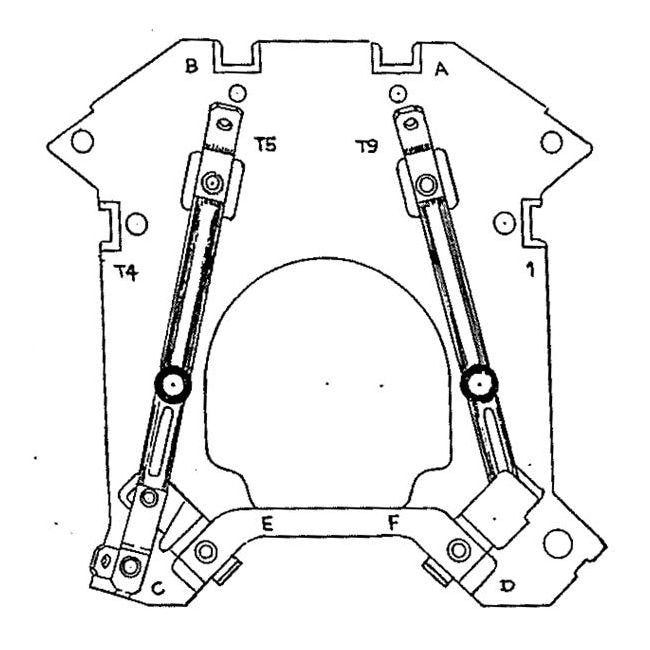

The picture above is the original OEM switch. The TORQ replacement part may look different but is designed to fit in the motor and perform the required functions.
Specifications Bearing
204
Specifications Figure Image
MD
Specifications List Price
31.90 USD
Specifications Manufacturer Part Number
77B15
Specifications Motor Manufacturer
RELIANCE ELECTRIC
