ReliaSeal Series 737 Sealed Receptacle Connector
ReliaSeal Series 737 Sealed Receptacle Connector
SKU:HIG-bb8701
ReliaSeal Series 737 Sealed Receptacle Connector - Reliable, Sealed Design for High Performance Connectivity
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
ReliaSeal Series 737 Sealed Receptacle Connector
$79.99
Quantity: 1
Claim Your Seller Account
ReliaSeal Series 737 Sealed Receptacle Connector
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

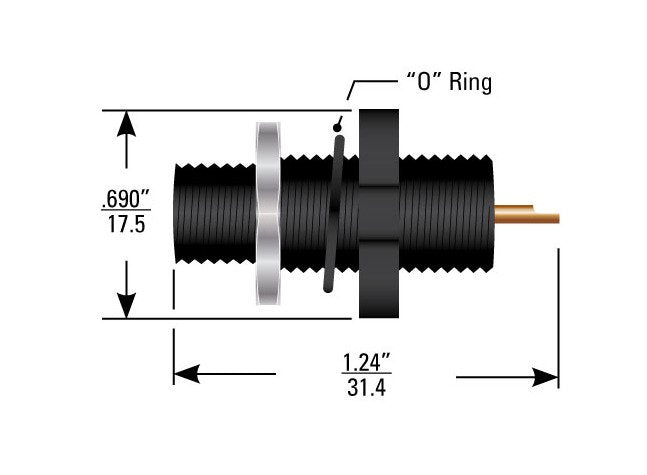

Experience unparalleled reliability with the ReliaSeal Series 737 Sealed Receptacle Connector, featuring a front or rear panel mount option, 'O' ring sealed design, and compatibility with LGH™ 1/2 1I leads. With altitude tolerance up to 70,000 ft., a current rating of 4-6 Amps, and a wide operating temperature range from -55 to 125°C, this connector ensures top-notch performance even in demanding environments. The threaded coupling style, ceramic insulator material, and gold-finished brass contacts guarantee secure connectivity and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Ceramic | Plastic
Specifications Lgh Compatibility
LGH 1/2 1I
Specifications Mating Compatibility
Mates all series 737 and LGH 1/2LI lead assemblies. Also mates all 15 kVDC rated Reynolds C737 lead assemblies; this combination will - reduce the upper operating temperature from +125ºC to +95ºC
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Front or Rear Mount
Specifications Panel Mounting Torque
5 to 6 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
15 kVDC
