Reverse Locking Board Support - .156 Board Hole, .062 Panel, .213 Chassis Hole, .04-.062 Chassis
Reverse Locking Board Support - .156 Board Hole, .062 Panel, .213 Chassis Hole, .04-.062 Chassis
SKU:01C-ff86db
Premium Reverse Locking Board Support for secure mounting of .062 PCBs in chassis, featuring Nylon 66 UL94V-2 material, wide temperature range, and convenient packaging, ideal for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse Locking Board Support - .156 Board Hole, .062 Panel, .213 Chassis Hole, .04-.062 Chassis
$29.99
Quantity: 1
Claim Your Seller Account
Reverse Locking Board Support - .156 Board Hole, .062 Panel, .213 Chassis Hole, .04-.062 Chassis
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 36 Series Reverse Locking Board Support is a premium solution for securing PCBs with .062 thickness in chassis ranging from .04 to .062 thickness. It features a durable construction of Nylon 66 UL94V-2 material (UL94V-0 available), ensuring reliable performance and fire resistance. With a temperature range of -40 to 185°F (-40 to 85°C), this support is suitable for diverse environments. Each unit has a .156 PCB hole and a .213 chassis hole, providing a secure fit. Packaged in quantities of 1000 per bag, these supports are color-coded for easy identification.

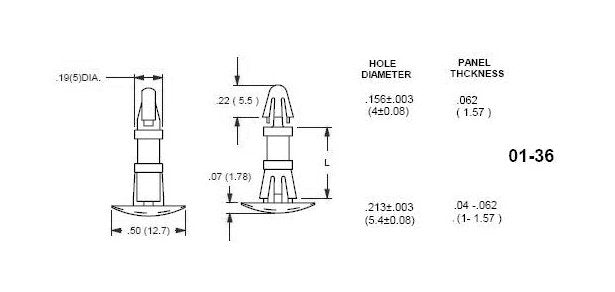

Product Specifications
Specifications L 015
.31 (8) inches (mm)
