Reverse Locking Board Support - .156 Board Hole x .250 Chassis Hole
Reverse Locking Board Support - .156 Board Hole x .250 Chassis Hole
SKU:01C-b10c9e
Secure your PCB with precision using the 41 Series Reverse Locking Board Support. Compliant with RoHS standards and ideal for .062 PCB and .05-.062 chassis thicknesses.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Reverse Locking Board Support - .156 Board Hole x .250 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Reverse Locking Board Support - .156 Board Hole x .250 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 41 Series Reverse Locking Board Support is designed for precise PCB and chassis thickness compatibility, featuring a .156 PCB hole and .250 chassis hole. Made of Nylon 66 UL94V-2 material, this support ensures secure fastening for boards with a thickness of .062 and chassis thickness ranging from .05 to .062. With a temperature range of -40 to 185°F (-40 to 85°C), this support offers durability and reliability in various environments. It complies with RoHS standards and is available in natural color, with UL94V-0 option upon request.

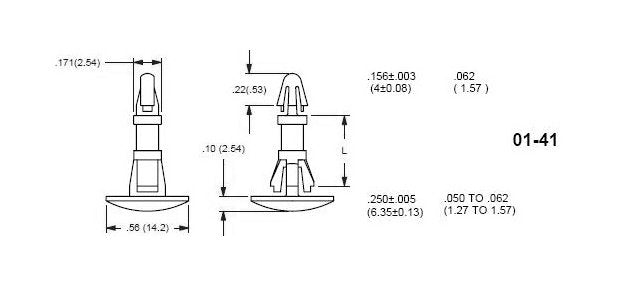

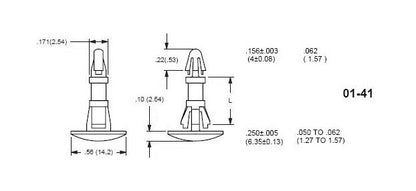

Product Specifications
Specifications L 015
.481 (12.2) inches (mm)
