Reverse Locking Board Support - .156 PCB Hole x .250 Chassis Hole
Reverse Locking Board Support - .156 PCB Hole x .250 Chassis Hole
SKU:01C-601ecd
Secure PCBs with precision using the 42 Series Reverse Locking Board Support with .156 PCB Hole x .250 Chassis Hole. RoHS compliant with durable Nylon 66 construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse Locking Board Support - .156 PCB Hole x .250 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Reverse Locking Board Support - .156 PCB Hole x .250 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 42 Series Reverse Locking Board Support is a reliable solution for securing PCBs with a thickness of .062 inches to chassis with a thickness ranging from .05 to .062 inches. Made of Nylon 66 UL94V-2 material, this support features a .156-inch PCB hole and a .250-inch chassis hole. It offers a natural color finish and comes in a pack of 1000 units for convenient stocking. With a temperature range of -40 to 185 F (-40 to 85 C), this board support ensures durability and stable performance. It is RoHS compliant, meeting environmental standards for peace of mind.

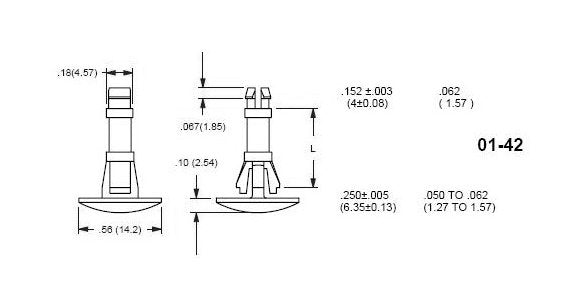

Product Specifications
Specifications L 015
.367 (9.32) inches (mm)
