Reverse Locking Board Support for .062 Chassis - 000-008 Series
Reverse Locking Board Support for .062 Chassis - 000-008 Series
SKU:01C-4ea368
Durable Reverse Locking Board Support for .062 Chassis, Nylon 66 Material, ASTM D 4066 PA111 Compliant, RoHS Certified
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse Locking Board Support for .062 Chassis - 000-008 Series
$29.99
Quantity: 1
Claim Your Seller Account
Reverse Locking Board Support for .062 Chassis - 000-008 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

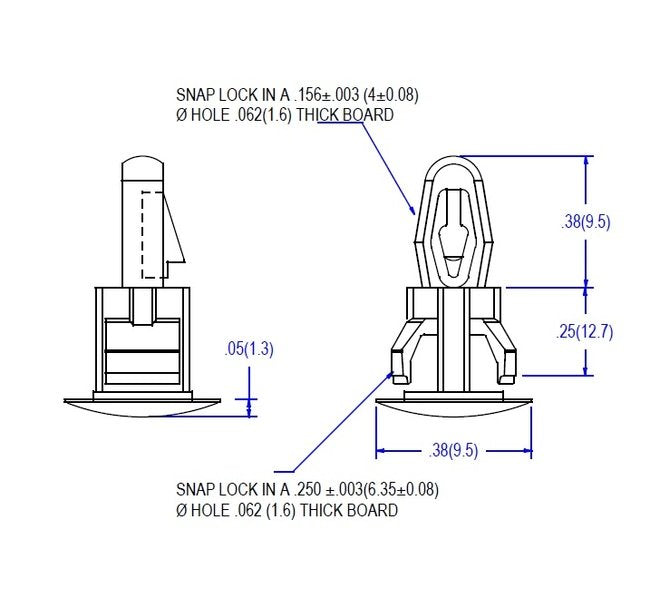

The 000-008 Series Reverse Locking Board Support is designed for optimal support with a .250 Spacing Height, .156 PCB Hole, and .250 Chassis Hole, suitable for .062 Panel Thickness applications at both ends. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), this support is resilient and meets ASTM D 4066 PA111 standards. RoHS compliant and suitable for a temperature range of -40 to 185°F (-40 to 85°C), this support offers robust construction for secure installations.
