Reverse Locking PCB Support: .156 Board Hole, .213 Chassis Hole, Nylon 66 Material
Reverse Locking PCB Support: .156 Board Hole, .213 Chassis Hole, Nylon 66 Material
SKU:01C-0d78df
39 Series Reverse Locking PCB Support: .062 PCB Thickness, .04-.062 Chassis Thickness, Nylon 66 Material
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse Locking PCB Support: .156 Board Hole, .213 Chassis Hole, Nylon 66 Material
$29.99
Quantity: 1
Claim Your Seller Account
Reverse Locking PCB Support: .156 Board Hole, .213 Chassis Hole, Nylon 66 Material
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 39 Series Reverse Locking PCB Support offers reliable support for PCBs with a .062 thickness and chassis ranging from .04 to .062 thickness. The .156 board hole and .213 chassis hole ensure secure positioning. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and can withstand temperatures from -40 to 185°F. Each pack contains 1000 supports, with options for UL94V-0 material upon request. Ensure stability and longevity for your electronics with this dependable PCB support solution.
Ready to Grow Without Cash Flow Constraints?

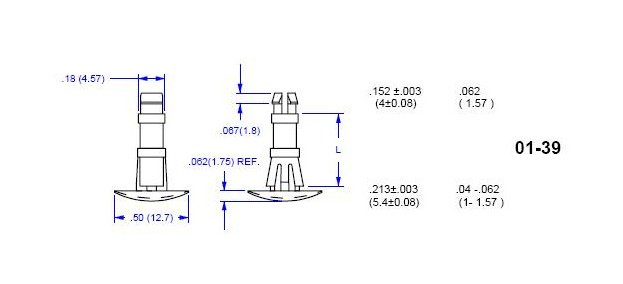

Product Specifications
Specifications L 015
.506 (12.8) inches (mm)
