Reverse Locking PCB Support - .156 Board Hole, .250 Chassis Hole
Reverse Locking PCB Support - .156 Board Hole, .250 Chassis Hole
SKU:01C-b8c690
Secure and reliable Reverse Locking PCB Support for .156 Board Hole, .250 Chassis Hole. Durable Nylon 66 material, RoHS compliant, and suitable for -40 to 185°F.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Reverse Locking PCB Support - .156 Board Hole, .250 Chassis Hole
$59.99
Quantity: 1
Claim Your Seller Account
Reverse Locking PCB Support - .156 Board Hole, .250 Chassis Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 41 Series Reverse Locking PCB Support is designed for secure and reliable board mounting. This support is compatible with .062 to .0625 panel thickness and features a .156 board hole along with a .250 chassis hole. Made from durable Nylon 66 material, it meets UL94V-2 standards (UL94V-0 available) and is RoHS compliant. With a temperature range of -40 to 185°F (-40-85°C), this support offers stability and protection for your circuit boards in various environments. Each pack contains 1000 supports in natural color for efficient and convenient installation.

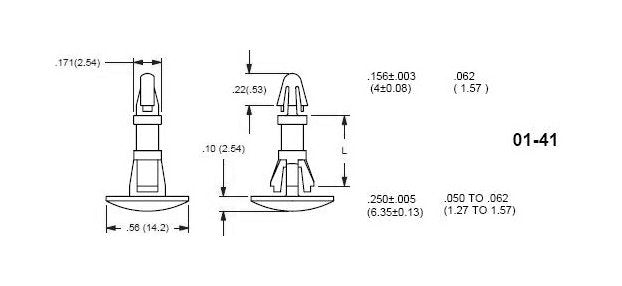

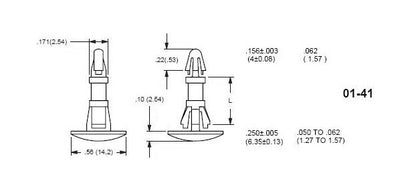

Product Specifications
Specifications L 015
.295 (7.5) inches (mm)
