Reverse Locking PCB Support (.156 Board Hole x .250 Chassis Hole)
Reverse Locking PCB Support (.156 Board Hole x .250 Chassis Hole)
SKU:01C-56847d
Securely mount circuit boards with the Reverse Locking PCB Support. Durable Nylon material, RoHS compliant, suitable for various industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse Locking PCB Support (.156 Board Hole x .250 Chassis Hole)
$29.99
Quantity: 1
Claim Your Seller Account
Reverse Locking PCB Support (.156 Board Hole x .250 Chassis Hole)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

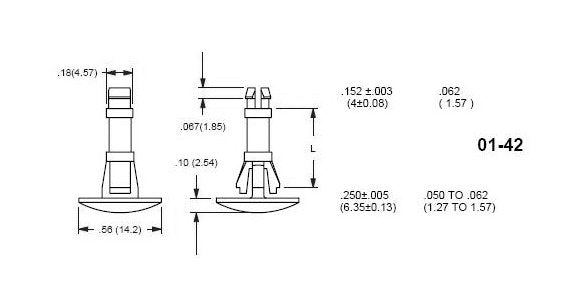

The 42 Series Reverse Locking PCB Support is designed for secure mounting of circuit boards with a .062 PCB Thickness onto chassis with a .05 to .062 Chassis Thickness. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this support features a .156 PCB Hole and .250 Chassis Hole for precise installation. It offers reliable insulation, RoHS compliance, and operates within a temperature range of -40 to 185 F (-40- to 85 C), making it ideal for diverse industrial applications requiring stability and safety.
Product Specifications
Specifications L 015
.492 (12.5) inches (mm)
