Reverse Locking PCB Support: .157 Board Hole x .213 Chassis Hole
Reverse Locking PCB Support: .157 Board Hole x .213 Chassis Hole
SKU:01C-4a2909
Enhance stability and precision with the Reverse Locking PCB Support for circuit boards. RoHS compliant and ASTM certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse Locking PCB Support: .157 Board Hole x .213 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Reverse Locking PCB Support: .157 Board Hole x .213 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

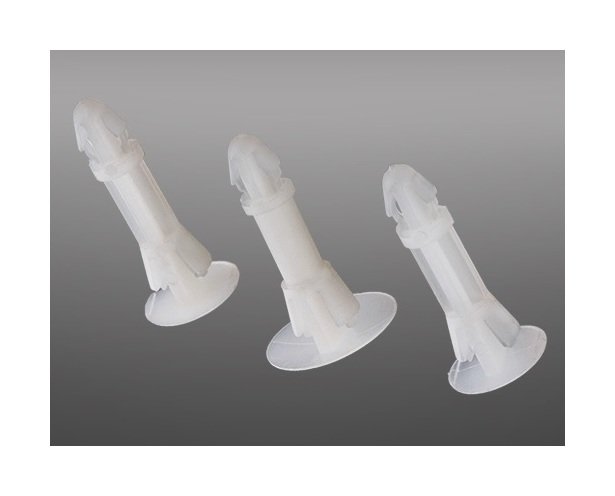

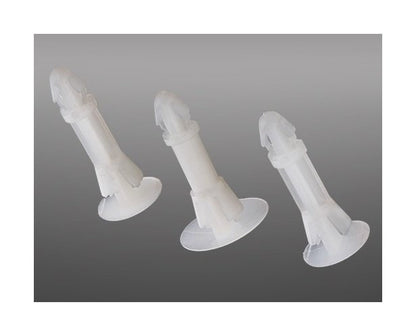

The 86 Series Reverse Locking PCB Support is designed for enhanced stability and secure assembly. This support accommodates .063 PCB Thickness and .063-.078 Chassis Thickness with metric spacing lengths, ensuring a precise fit. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 PA111 standards and is RoHS compliant. Operating in a temperature range of -40 to 185 F (-40 to 85 C), this support offers reliability and performance for your circuit board needs.

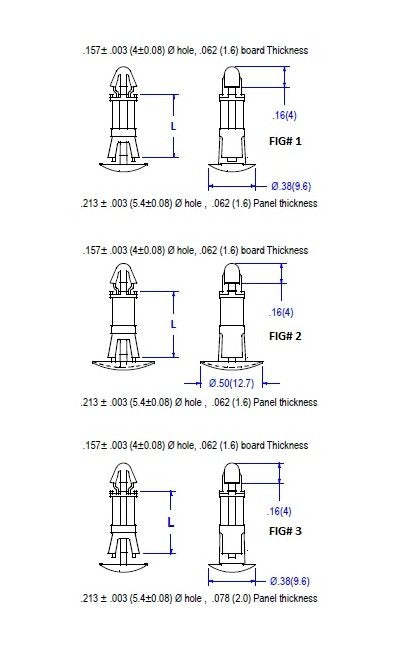

Product Specifications
Specifications Fig
1
Specifications L 015
.472 (12) inches (mm)
