Reverse Locking PCB Support Board (41 Series)
Reverse Locking PCB Support Board (41 Series)
SKU:01C-2a2189
High-quality Reverse Locking PCB Support Board for reliable circuit board support. RoHS compliant, ASTM D 4066 PA111 certified. Pack of 1000.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Reverse Locking PCB Support Board (41 Series)
$49.99
Quantity: 1
Claim Your Seller Account
Reverse Locking PCB Support Board (41 Series)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

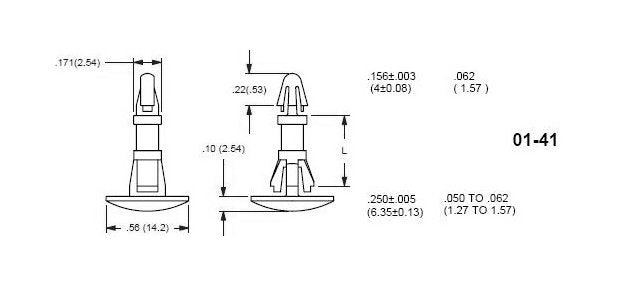

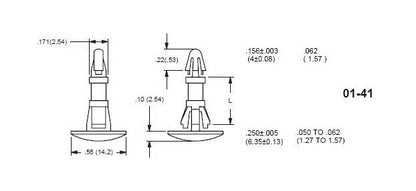

The 41 Series Reverse Locking PCB Support Board is designed for optimal support, featuring a .062 PCB thickness, .05 to .062 chassis thickness, .156 PCB hole, and .250 chassis hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it ensures reliable performance in a temperature range of -40 to 185 F (-40 to 85 C). This support board is RoHS compliant, ASTM D 4066 PA111 certified, and comes in a natural color. Each pack contains 1000 units, making it ideal for volume purchases.
Product Specifications
Specifications L 015
.357 (9.06) inches (mm)
