Reverse PCB Support for .157 Board Hole x .217 Chassis Hole
Reverse PCB Support for .157 Board Hole x .217 Chassis Hole
SKU:01C-270825
Securely lock PCB in place with our Reverse Support designed for .157 Board Hole x .217 Chassis Hole. RoHS compliant and ASTM D 4066, PA111 certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Reverse PCB Support for .157 Board Hole x .217 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Reverse PCB Support for .157 Board Hole x .217 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

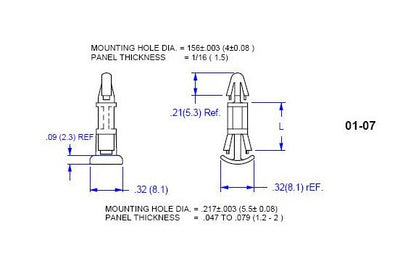

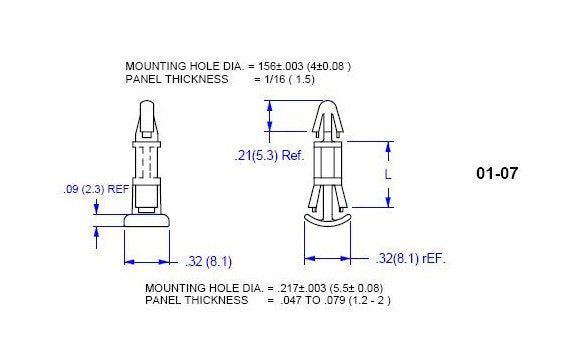

The 07 Series Reverse PCB Support is designed for easy installation on chassis with thickness ranging from .047 to .079 inches. Featuring a minimal board protrusion, this support locks securely yet can be easily released by hand. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and has a temperature range of -40 to 185F. It meets ASTM D 4066 and PA111 standards, ensuring reliable performance in various applications.
Product Specifications
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L 015
.197 (5.0) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
