Revolution Sensor Magnet DC Motor - DME34 Series
Revolution Sensor Magnet DC Motor - DME34 Series
SKU:PER-f2ab08
Compact, powerful DC motor with long-life, high output, and low noise features. Ideal for a wide range of gear applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Revolution Sensor Magnet DC Motor - DME34 Series
$299.99
Quantity: 1
Claim Your Seller Account
Revolution Sensor Magnet DC Motor - DME34 Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

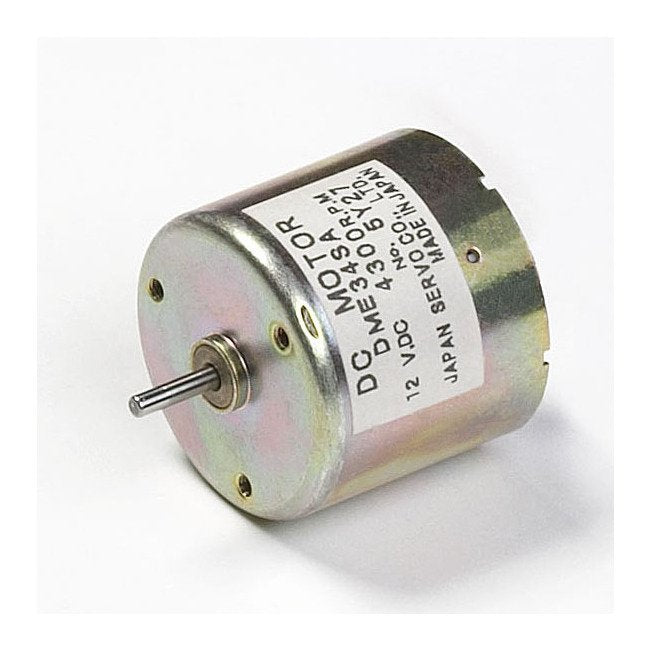

The Revolution Sensor Magnet Type Motor from the DME34 Series features a compact design with high power ranging from 0.7 W to 26 W. With a variety of lineups totaling 224 modes, this motor caters to various gear head sizes from 32 Dia to 80 Sq and more. Offering exceptional durability, it can withstand intermittent operation over 1 million cycles thanks to its optimized brush design and has a continuous operating life of 1000 hours. Designed for high output, heat dissipation, and resistance, this motor delivers superior performance with a high radial load capacity, low noise, and increased insulation. Equipped with a magnetic revolution sensor and noise filter, it ensures precision and reliability in diverse applications.
Product Specifications
Additional Information 0
Gear-Head Design | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications L
43.1 mm
Specifications Model Code
SB
Specifications Motor Frame Size
34 mm | 1.339 in
Specifications Product Type
DC Motor
Specifications Rated Output
1.3 W
Specifications Rated Voltage
24 V
Specifications Series
DME34
Specifications Weight
110 g | 0.24 lb
