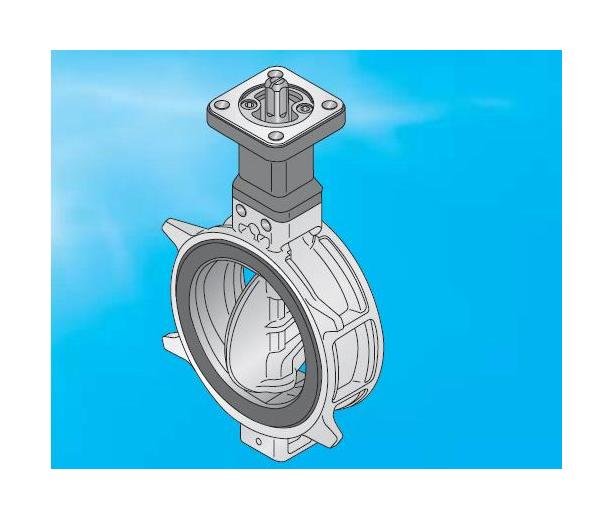

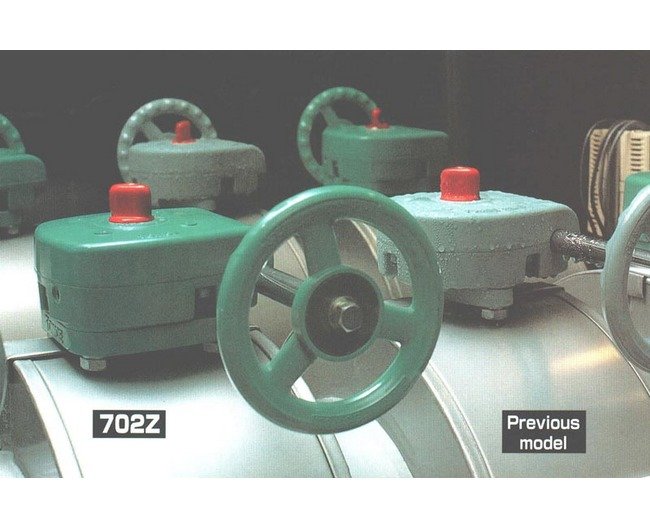

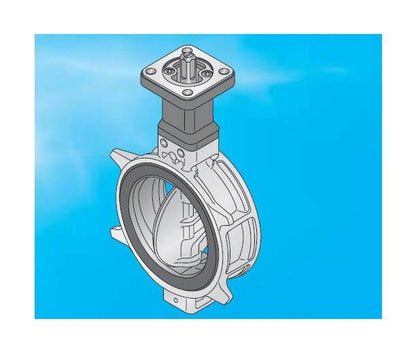

Introducing the cutting-edge Series 773Z Aluminum Diecast Butterfly Valve - an extended model of our acclaimed 702Z. Featuring a high-performance engineering plastic top plate with aluminum diecast body, this valve offers exceptional condensation prevention, enabling auto-actuation with ISO top flange design. No condensation forms on the actuator and mounting flange under specific conditions, ensuring optimal performance. With compliance to JISB2032 design standard, this valve guarantees a maximum working pressure of 1.0 MPa and a wide working temperature range. The surface treatment with epoxy-melanin baked body enhances durability, making it ideal for various applications.
Product Specifications

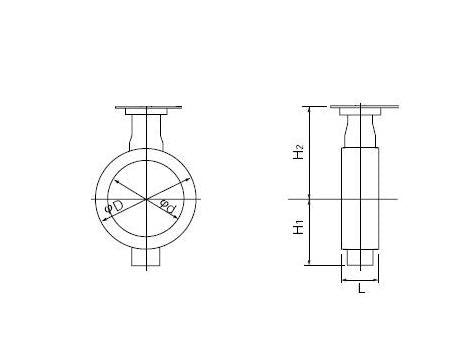

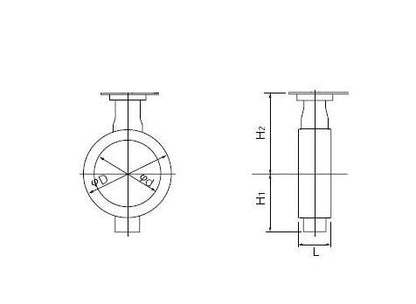

Dimensional Information D
111 mm
Dimensional Information H1
72 mm
Dimensional Information H2
151 mm
Dimensional Information L
46 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
38 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U5/8
Flange Information Ansi 125lb150lb Long Bolts Length
140 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
38 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
30 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
105 mm
Flange Information Jis 10k Long Bolts And Nuts
M16
Flange Information Jis 10k Long Bolts Length
125 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
4
Flange Information Jis 10k Number Of Long Bolts
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
30 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
25 mm
Flange Information Jis 5k Hexagon Boltsnuts
M12
Flange Information Jis 5k Hexagon Boltsnuts Length
90 mm
Flange Information Jis 5k Long Bolts And Nuts
M12
Flange Information Jis 5k Long Bolts Length
110 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
4
Flange Information Jis 5k Number Of Long Bolts
4

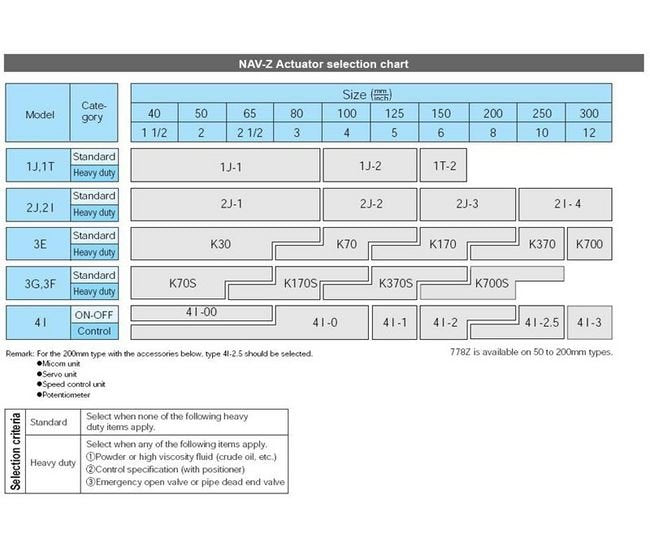

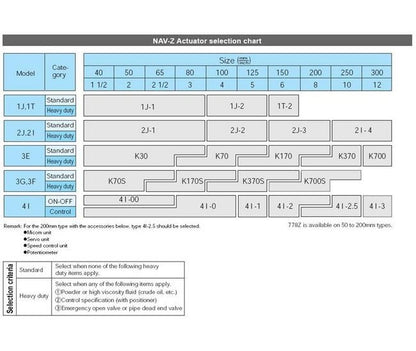

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Lock Lever | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K170S | K30 | K70S
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
065 - 2-1/2"
Specifications Stem Material
Stainless Steel Type 420J2
