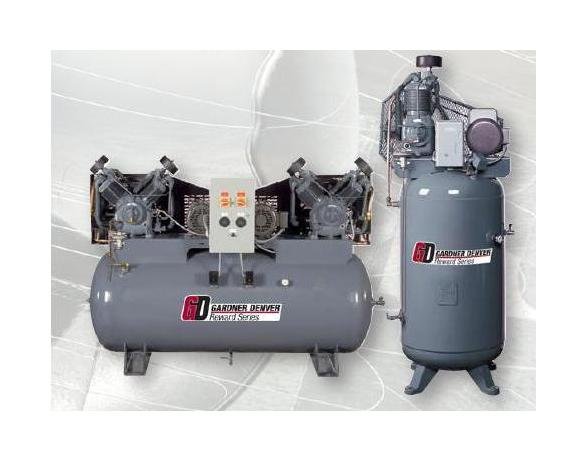

Reward Series Vertical Reciprocating Air Compressor with 80V gal Tank
Reward Series Vertical Reciprocating Air Compressor with 80V gal Tank
SKU:REC-533685
Reliable and efficient Simplex Tank Mounted Air Compressor for industrial applications with 5 hp power, 175 PSI rating, and 80V gal tank.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Reward Series Vertical Reciprocating Air Compressor with 80V gal Tank
$2,499.99
Quantity: 1
Claim Your Seller Account
Reward Series Vertical Reciprocating Air Compressor with 80V gal Tank
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Reward Series Simplex Tank Mounted Air Compressor is designed for durability and efficiency, ideal for a wide range of industrial applications. Featuring a 5 hp power, 175 PSI rating, and 80V gallon tank capacity, this compressor is equipped with heavy-duty components including high flow disc valves, intercoolers, and oil level sight glass. The compressor pump comes with an industry-leading five-year warranty, ensuring reliable performance over time. Meeting U.L. standards for electrical components, this compressor is a dependable choice for institutions seeking quality air solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Compressor Pump Warranty 0
Each new Gardner Denver Assembled Unit has a five (5) year warranty on the compressor pump only, against defects in materials or workmanship under normal use and service, from the date of installation or sixty-six (66) months from the date of shipment by Gardner Denver or a Gardner Denver distributor, whichever may occur first. The five-year extended warranty covers parts and labor and is prorated over the five years as follows: Year One — 100% coverage Year Two — 90% coverage Year Three — 80% coverage Year Four — 70% coverage Year Five — 60% coverage Head valves are warranted for Year One only. Gardner Denver makes no warranty on components and/or accessories furnished to Gardner Denver by third parties, such as electric motors, gasoline engines and controls. These are warranted only to the extent of the original manufacturer’s warranty to Gardner Denver. Includes a five-year warranty on the air receiver, pump and motors.
Specifications 175 Psi Rating Cfm Delivery
16.5
Specifications Approximate Weight
535 lb
Specifications Configuration
Vertical
Specifications Height
77 in
Specifications Length
33 in
Specifications Power
5 hp
Specifications Pump Model
R15B
Specifications Speed
710 rpm
Specifications Tank Capacity
80V gal
Specifications Variants Ca
CASRSA57
Specifications Variants Std
CASRSA04
Specifications Voltage Vph
230/3
Specifications Width
24 in
Standard Equipment Features 0
Heavy Duty Two Stage, Splash Lubricated Air Compressor Pump(s) Multi-Finned Cylinders Integral Cylinder Head Intercoolers for Cooling Between Stages Reliable High Flow Disc Valves Oversized Main Bearings Balanced Crankshaft Oil Level Site Glass Centrifugal Unloader for Loadless Starting 0-300 PSIG Air Pressure Gauge Bucket High Drain Valve Factory Fill with AEON™ Lubricants OSHA Approved Belt Guard ASME Code Air Receiver – Pressure Relief Valve – Service Valve – Drain Valve – Pressure Gauge U.L. Listed Electrical Components Vertical or Horizontal Configurations Oversize Inlet Filter – Silencers Mounted Magnetic Starter Vibration Isolator Pads Automatic Tank Drain Low Oil Level Monitor Air Cooled Aftercooler Dual Control on 10 HP Simplex and Above
U L Standards 0
Gardner Denver, in common with other major, industrial compressor manufacturers, does not market compressors which are U.L. listed. In general, U.L. is concerned with electrical components that may be utilized on compressor units, rather than a complete compressor package or system. All electrical components used on Gardner Denver compressors are U.L. listed. Each component – motor, starter, pressure switch, control panel – carries a U.L. identification mark on the nameplate or inside the electrical enclosure cover. The mark will be the letters “UR” reversed (as if held up to a mirror), indicating the item is “recognized” by U.L.
