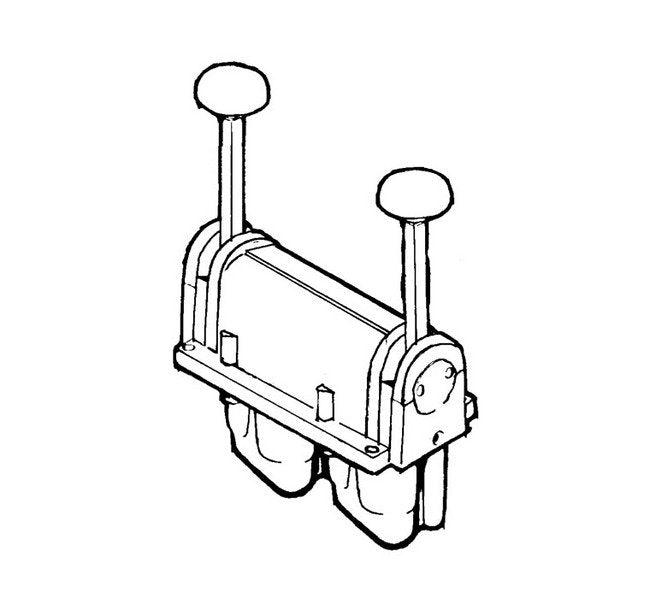

Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves

Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves

DRI-d5cd1c

Precisely control air flow with Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves for durable and versatile performance.

$129.99
$129.99
Sale

Initiate Order

Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves

Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves

$129.99

Quantity: 1

Claim Your Seller Account

Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves

Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Rexroth 2-HA-3 & 2-HA-4 Double Handle Detented Valves offer precise pneumatic directional control with a streamlined design for panel mountings. Featuring durable construction with steel shaft, bronze bearings, and Nylatron detents, these valves ensure lasting performance. Ideal for outdoor installations, these valves provide versatile operation and multiple handle options for varied applications, such as transmission controls and multi-circuit directional control.

Product Specifications

Features Features
Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

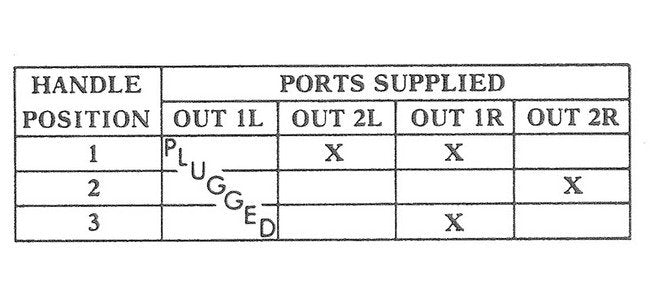

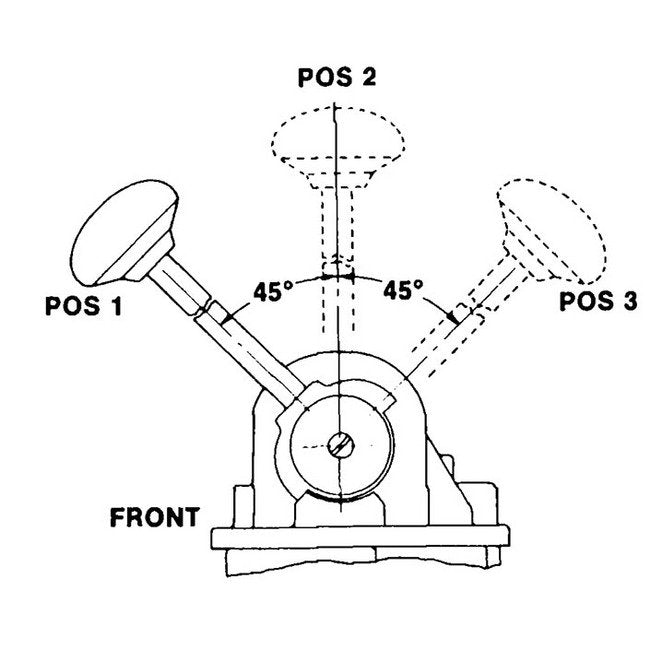

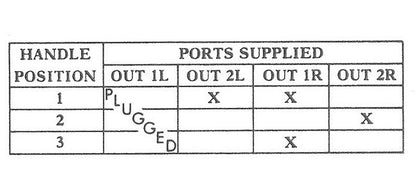

Specifications Handle Positions
3

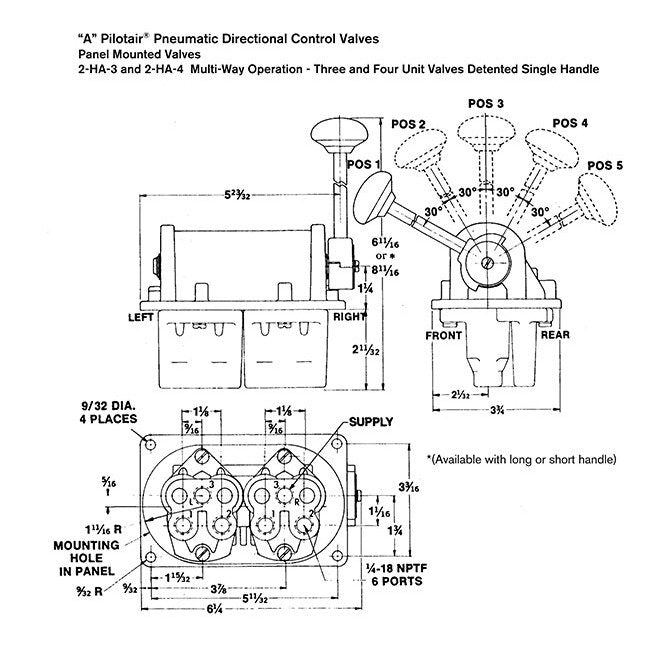

Specifications Height
6 11/16 in. | 8 11/16 in.
Specifications Length
6 1/4 in.
Specifications Model
2-HA-3
Specifications Old Part
P -061266-0002 | P 061266-2 | P 61266-2 | P061266-2 | P61266-2
Specifications Type
Triple 3-Way Valve
Specifications Weight
4 lb | 1.81 kg
Specifications Width
3 3/4 in.
