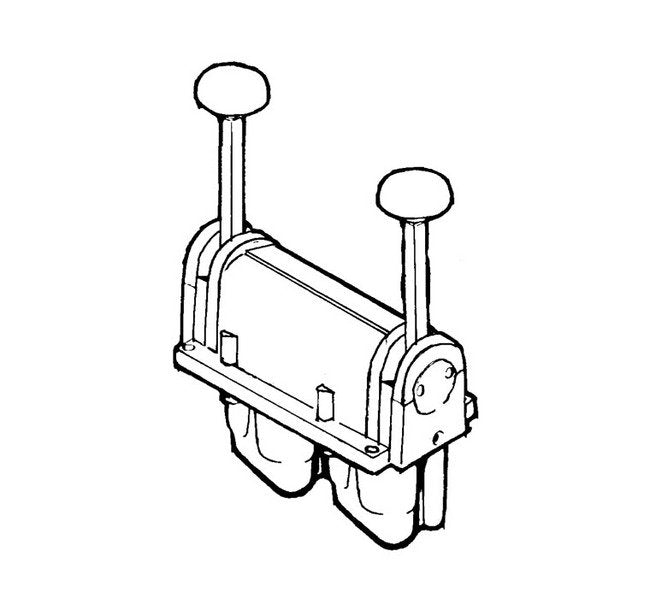

Rexroth 2-HA-3 & 2-HA-4 Double Handle Panel-Mounted Valve

Name: Rexroth 2-HA-3 & 2-HA-4 Double Handle Panel-Mounted Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-4beff4
Price: 189.99 USD
Availability: OutOfStock

SKU:DRI-4beff4

Enhanced panel-mounted valve for marine, mobile, & oil field applications, offering superior durability & versatility.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth 2-HA-3 & 2-HA-4 Double Handle Panel-Mounted Valve offers unparalleled versatility and durability for deluxe panel mountings in marine, mobile, and oil field applications. Designed to meet the strictest operational demands, this valve features a one-piece solid steel shaft, bronze bearings for longer wear, and tooth-type Nylatron plastic detents. Its compact design and corrosion-resistant construction make it ideal for outdoor installations and unfavorable working conditions. With multiple handle positions and options, it provides precise directional control and ease of maintenance, ensuring longer service life.

Product Specifications

Features Features

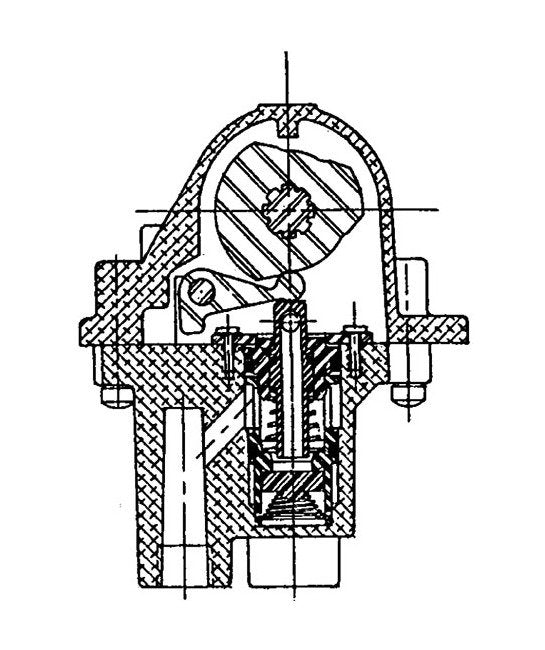

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

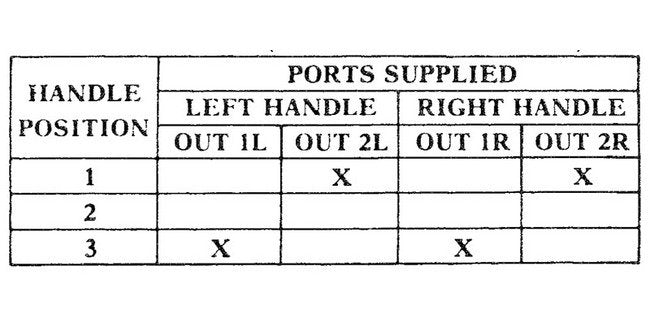

Specifications Handle Positions

3 (Left Handle) | 3 (Right Handle)

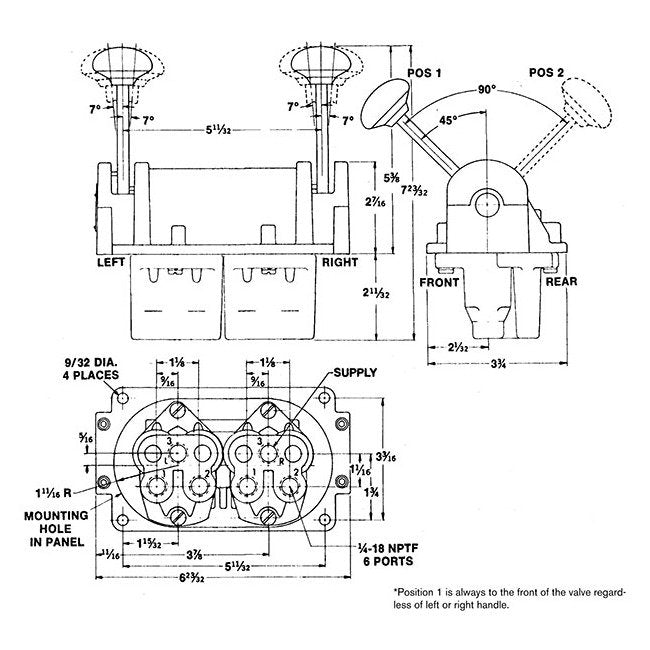

Specifications Height

7 23/32 in.

Specifications Length

6 23/32 in.

Specifications Model

2-HA-4

Specifications Old Part

P -058458-00001 | P 058458-1 | P 58458-1 | P058458-1 | P58458-1

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth 2-HA-3 & 2-HA-4 Double Handle Panel-Mounted Valve
