Rexroth 2-HA-3 & 2-HA-4 Dual Handle Gated Air Valve

Name: Rexroth 2-HA-3 & 2-HA-4 Dual Handle Gated Air Valve
Brand: Distributor To Industry, Inc.
SKU: DRI-ddc760
Price: 349.99 USD
Availability: OutOfStock

SKU:DRI-ddc760

Enhance control and reliability with the Rexroth Dual Handle Gated Air Valve, ideal for marine, mobile, and oil field applications.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Rexroth 2-HA-3 & 2-HA-4 Dual Handle Gated Air Valve is designed for premium panel mountings in marine, mobile, and oil field applications. With a durable construction featuring solid steel shaft, bronze bearings, and Nylatron plastic detents, it ensures enhanced strength and longevity. This valve assembly offers versatile operating cams for multiple handle positions, up to 4 3-way valves, and easy maintenance, meeting the strict standards required for transmission controls and diverse supply pressure applications.

Product Specifications

Features Features

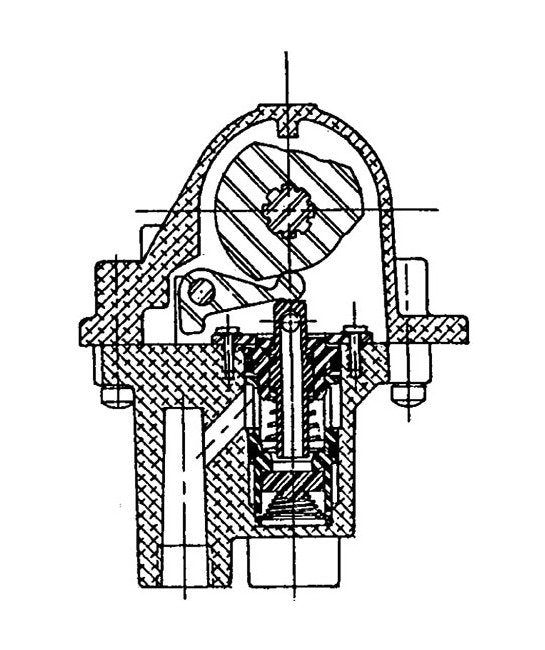

Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

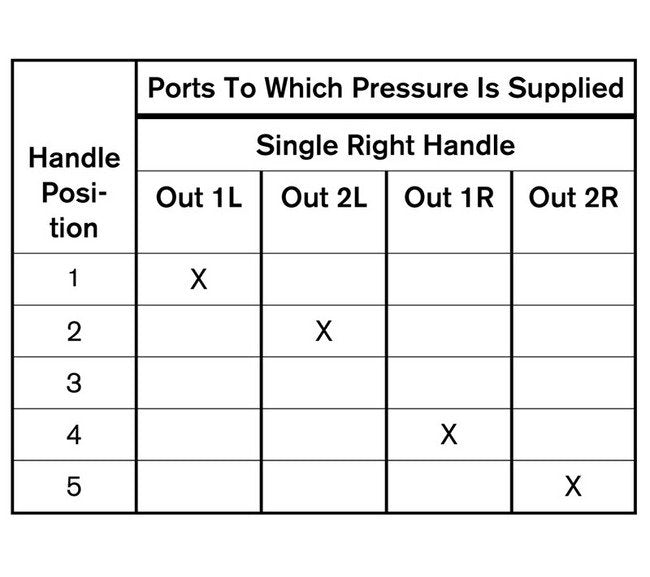

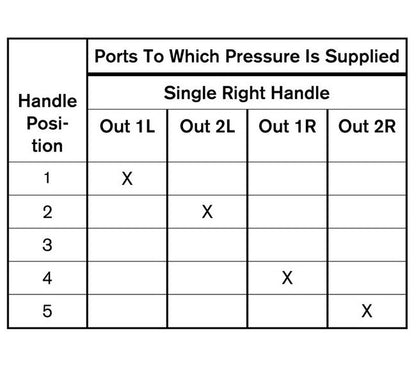

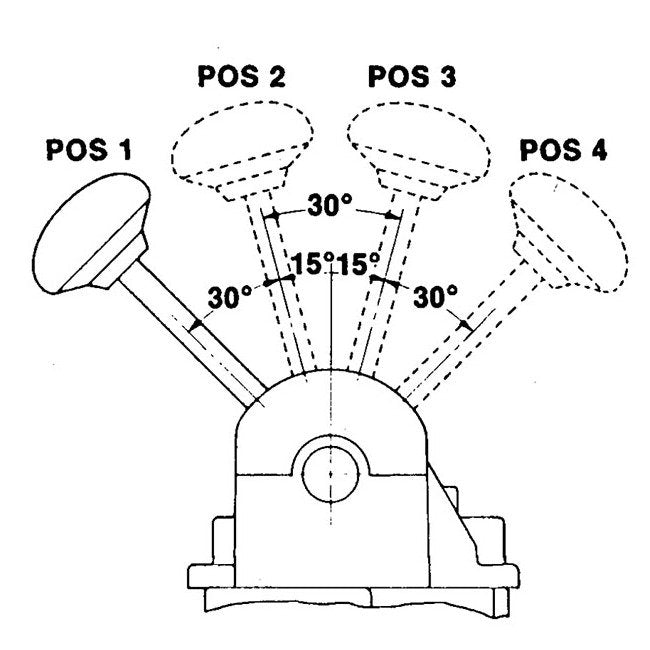

Specifications Handle Positions

4 | 5

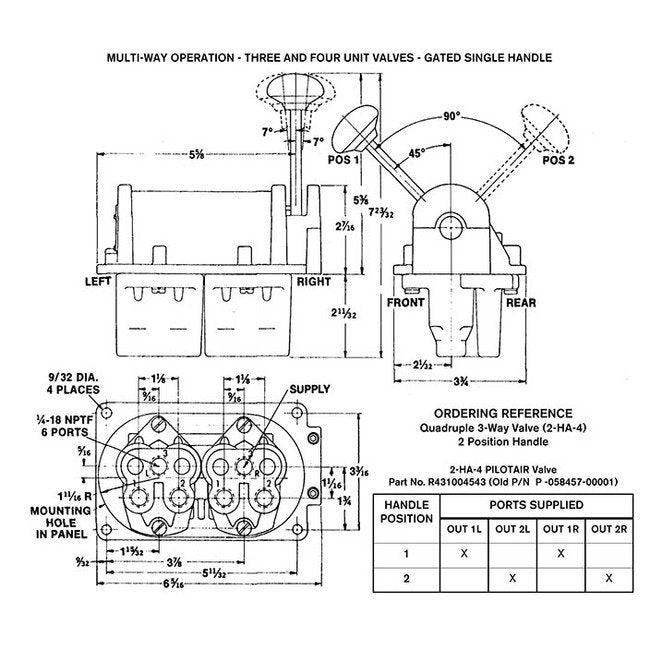

Specifications Height

7 23/32 in.

Specifications Length

6 5/16 in.

Specifications Model

2-HA-4

Specifications Old Part

P 062275 | P -062275-00000 | P 62275 | P062275 | P62275

Specifications Type

Quadruple 3-Way Valve

Specifications Weight

4 lb | 1.81 kg

Specifications Width

3 3/4 in.

Rexroth 2-HA-3 & 2-HA-4 Dual Handle Gated Air Valve
