Rexroth 2-HA-3 & 2-HA-4 Panel-Mounted Pneumatic Directional Control Valve
Rexroth 2-HA-3 & 2-HA-4 Panel-Mounted Pneumatic Directional Control Valve
SKU:DRI-38fc80
Versatile Rexroth 2-HA-3 & 2-HA-4 Panel-Mounted Pneumatic Control Valve for marine, mobile, and oil field applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Rexroth 2-HA-3 & 2-HA-4 Panel-Mounted Pneumatic Directional Control Valve
$249.99
Quantity: 1
Claim Your Seller Account
Rexroth 2-HA-3 & 2-HA-4 Panel-Mounted Pneumatic Directional Control Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

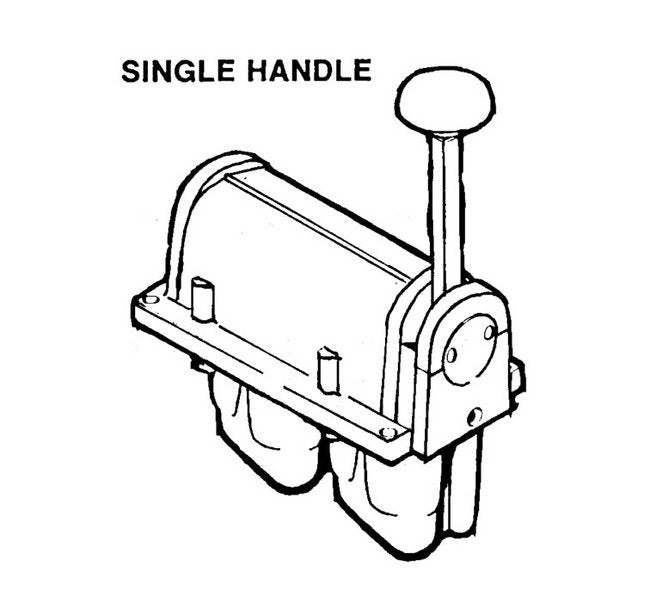

The Rexroth 2-HA-3 & 2-HA-4 Panel-Mounted Pneumatic Control Valve is a versatile, stream-lined solution designed for deluxe panel mountings. With a compact design for outdoor installations, it features a variety of handle positions and unique features like solid steel shafts, bronze bearings, and die-cast aluminum body for added strength, durability, and corrosion resistance. Ideal for marine, mobile, and oil field applications, this valve meets high standards of strength and reliability for demanding operations.
Product Specifications
Features Features
Several new features have been designed into the Panel-Mounted "A" PILOTAIR Valve for added strength, easier maintenance and longer service life.One-piece solid steel shaft for increased strength.Bronze bearings in cam housing for longer wear.Separate steel handle and hub for increased strength.Tooth-type Nylatron plastic detents for longer wear and more positive detenting.Internal centering spring assembly for longer wear and more positive handle centering.Die-cast anodized aluminum body and cam housing for lighter weight, added strength and corrosion resistance.More-positive handle latch. Available in one, two, and three positions for added flexibility and longer service lift.

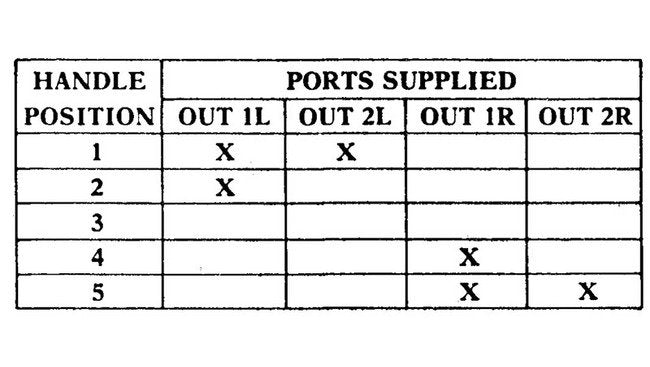

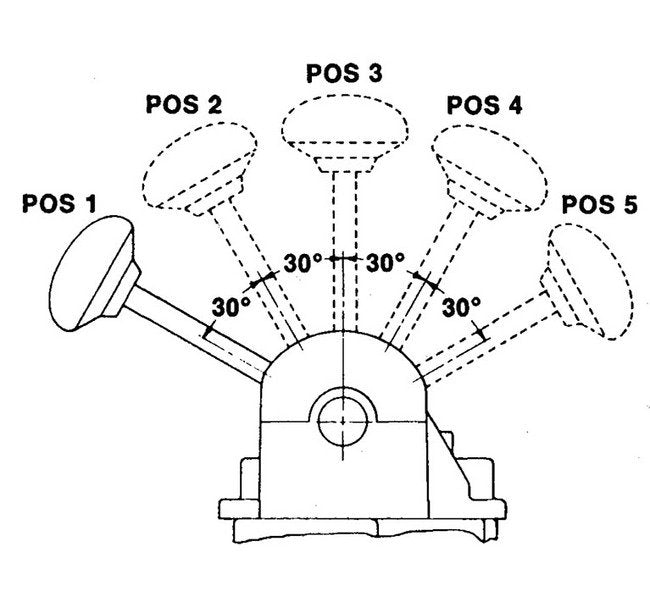

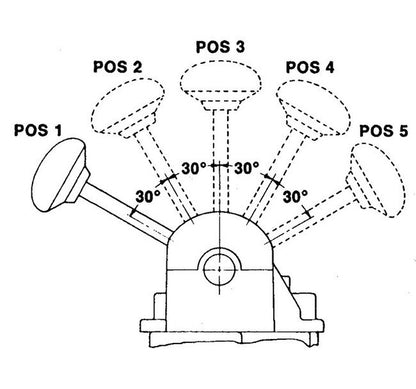

Specifications Handle Positions
5

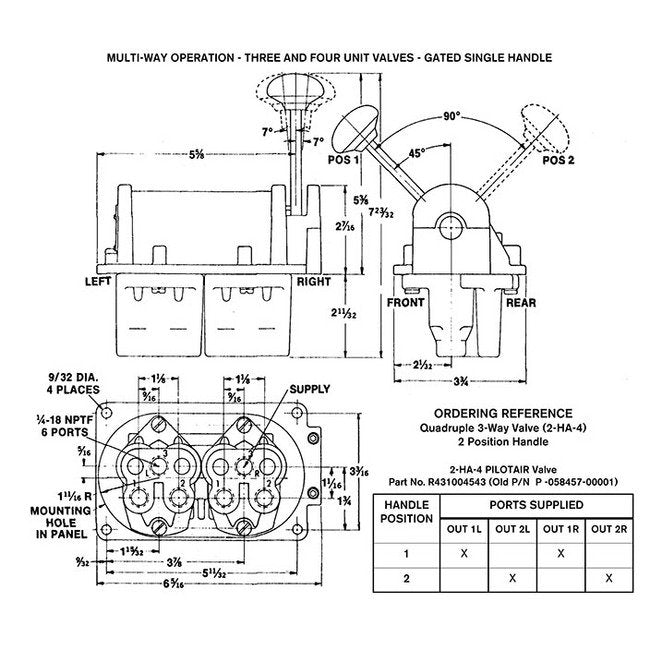

Specifications Height
7 23/32 in.
Specifications Length
6 5/16 in.
Specifications Model
2-HA-4
Specifications Old Part
P 060056 | P -060056-00000 | P 60056 | P060056 | P60056
Specifications Type
Quadruple 3-Way Valve
Specifications Weight
4 lb | 1.81 kg
Specifications Width
3 3/4 in.
